ZKTeco - SilkID v2.0 Fingerprint Enrollment Reader
ZKTeco - SilkID v2.0 Fingerprint Enrollment Reader
ZKTeco
Regular price
$410.80 USD
Regular price
$492.96 USD
Sale price
$410.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

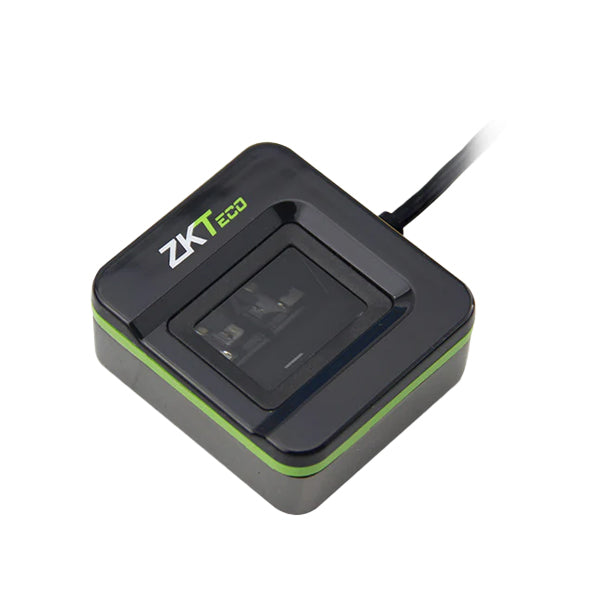

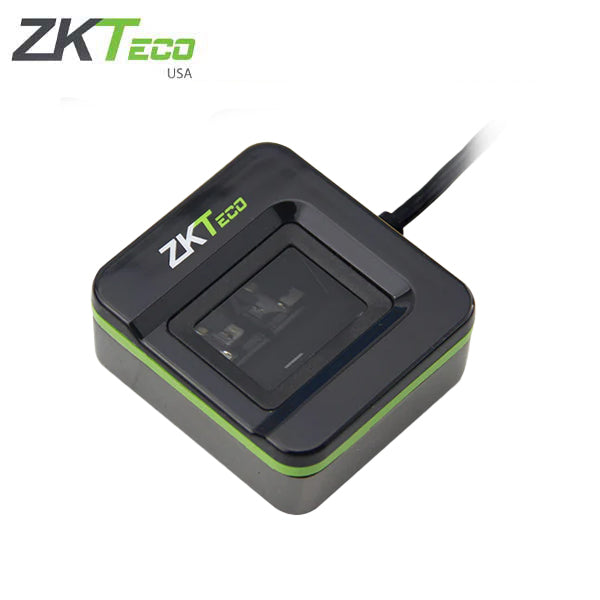

SLK20R is a leading fingerprint scanner designed by ZKTeco USA laboratory which adopts the advanced optical design. It has a superior ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel camera. It can be the most comfortable and affordable desktop enrollment and identification device.
Features:
- FBI PIV and Mobile ID certification; FAP20
- Selectable 500, 750, or 1000 dpi output image
- Large image capture area: .6 inches x .8 inches
- Durable glass touch surface
- Rejects spoof fingerprints
- Fast capture. 12 fps frame rate
- USB2.0 High Speed
- Multicolor (white, green, red) LED bar for status indication.
- Compact size
- Sealed against water and dust. IP64 rating
- Ambient light rejection. Sunlight operation
- Low Power Idle Mode
- -20º to 55ºC operating temperature range
Specifications:
| CPU | 280MHz DSP |
| Flash | 32 MB |
| SoC | RTOS[image out only] |
| Image Quality | 2 million pixels CMOS |
| Encrypted Fingerprint Data | Yes |
| Sunlight Operation | Yes, Dark field and Automatic Gain / Exposure |
| Water Splash | Yes |
| Dry, Wet, or Rough Fingerprints | Work well |
| Power Consumption | 5V:200mA Scanning;5V:60mA idle (waiting for finger) |
| Live Fingerprint Detection | Yes |
| LED | White |
| Product Certifications | FCC, CE, RoHS, PIV |
| Power Voltage | 5V (USB) |
| Power Current | 200mA |
| Communication | USB 2.0 / USB1.1 |
| Interface Socket | USB Type A |
| Image Resolution | 500~1000 dpi |
| Effective Collecting Area | 15.24 * 20.32 mm (FAP20) |
| Collecting Area | 16.5 * 23 mm |
| Image Size | 300 * 400 pixel (FAP20) |
| Dimension | 49 * 44 * 20.1mm (L*W*H) |
| Image Format | RAW, BMP, JPG |
| Template | ZKFinger V10.0 ; ISO19794-2 ; ANSI-378 |
| Template Size | 1- 4KB (ZKFinger V10.0);1568 B (ISO 19794-2) |
| Gray Level | 256 |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h. |
