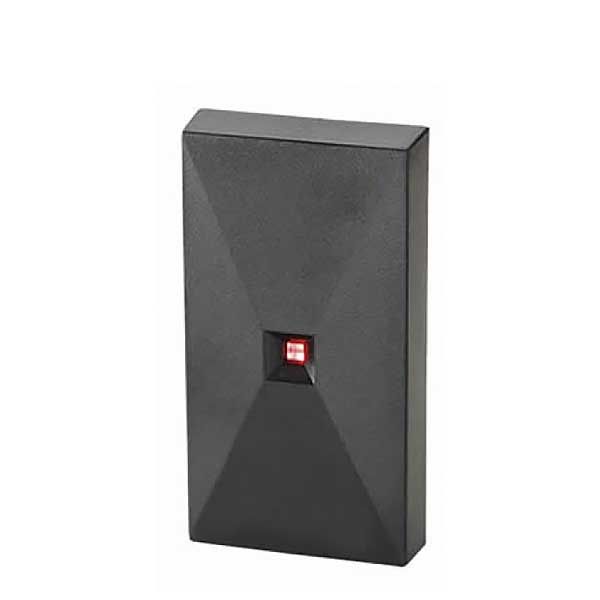

ZKTeco - KR503H - Outdoor / Indoor Weigand HID Reader - 26 Bit - 125 KHz HID Card Reader - Single Gang

ZKTeco - KR503H - Outdoor / Indoor Weigand HID Reader - 26 Bit - 125 KHz HID Card Reader - Single Gang

ZKTeco

Regular price $113.66 USD
Regular price $174.72 USD Sale price $113.66 USD
Sale Sold out
Shipping calculated at checkout.

SLK-ZKT-KR503H
Item Number: XXXX

The KR503H External 26 Bit Weigand ID Reader for 125 Khz Prox Cards The KR Series is the main accessory line of external Wiegand readers for all ZKTeco access control devices. With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10 cm The fact that this series is waterproof, and the operating temperatures can range from -20 degree to +65 degree, it is the ideal solution for outdoor installation. Also they can be connected with our ZKTeco controllers.

  • Read range of up to ~ 5" for proximity card
  • Indoor/Outdoor operation
  • Solid Epoxy potted
  • Waterproof IP65
  • Electronics sealed in weather and tamper-resistant epoxy potting
  • Call (855) 928-0349 for Dealer Prices!

Specifications

Card Support
125 KHz HID Card Reader
Read Time <300ms
Read Distance  ~ 5" Inches
Output Format
26bit Wiegand
LED
red, green, amber and “off” (represent 4 states)
Beeper yes
Power 5 to 16V DC
Current draw 30 mA typical, 75 mA peak @ 12V DC
Waterproofing IP65 Electronics sealed in weather and tamper-resistant epoxy potting
Operating Humidity
10% to 90% non-condensing
Operating Temp
-35° F to 149° F / -40° C to + 65° C
Mounting Single Gang - ~ 2-3/4" wide
