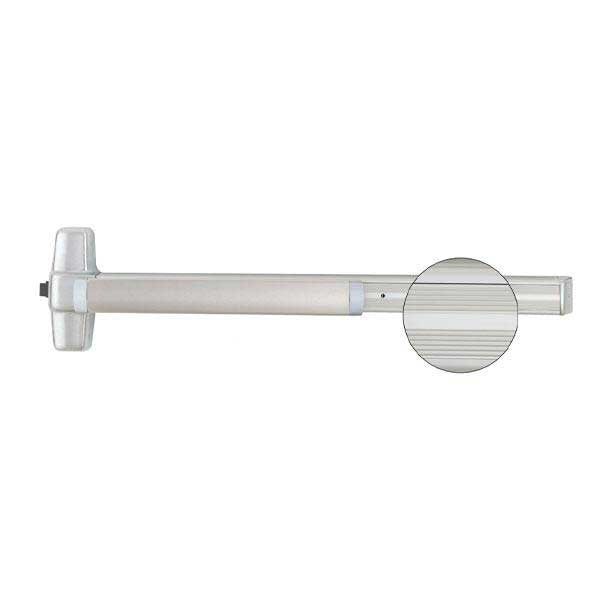

Von Duprin - 99EO - Rim Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Lengths
Von Duprin - 99EO - Rim Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Lengths
Von Duprin
Regular price
$1,504.33 USD
Regular price
$1,805.19 USD
Sale price
$1,504.33 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 99 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected.
Specifications
| Trim | No Trim - Exit Only |
| Device functions | Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device |
| Device lengths | 3' 2'4' to 3' (711mm to 914mm) Door size |
| Device centerline from finished floor |
39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion |
| Center case dimensions |
8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) |
| Mechanism case dimensions |
2 1⁄4" x 2 1⁄4" (57mm x 57mm) |
| Projection push bar | Pushbar neutral – 3 13/16" (97mm) |
| Latch bolt | Deadlocking, 3/4" (19 mm) throw |
| Fasteners | Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal screws |
| Finish | 626 Satin Chrome |
| Dogging feature | Hex key dogging standard |
| Strikes | 299 – Dull black |
| Fire Rated | No |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
Downloads
