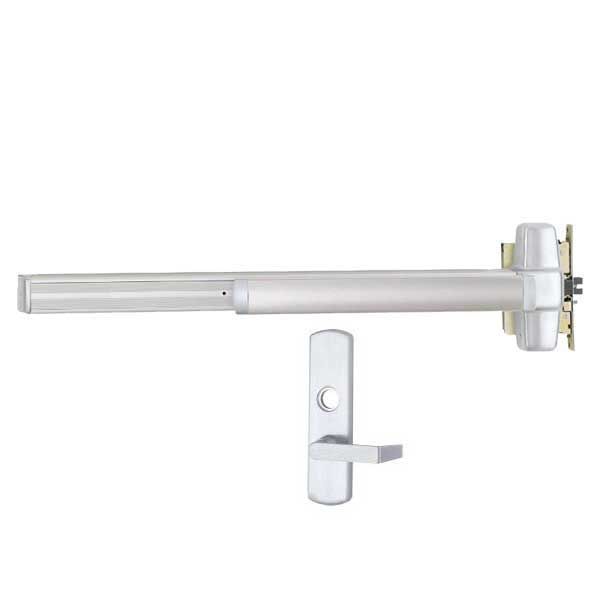

Von Duprin - 9975 - Mortise Lock Exit Device - 06 Lever - Night Latch - 3' Long - Less Core - LHR - Satin Chrome - Grade 1
Von Duprin - 9975 - Mortise Lock Exit Device - 06 Lever - Night Latch - 3' Long - Less Core - LHR - Satin Chrome - Grade 1
Von Duprin
Regular price
$2,285.61 USD
Regular price
$2,614.90 USD
Sale price
$2,285.61 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
9975 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3⁄4" (121mm). The 9975 device has a smooth mechanism case.
Features:
- The breadth of available options allows for tailoring to any facility’s needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options available
- Retrofit kits available to keep up with changing technology
Specifications:
| Function | Night Latch - Key retracts latch bolt |
| Device Length | 3' Length. fits 2'4" to 3' Door size |
| Door Thickness | 1-3/4" |
| Device centerline from finished floor | 39 13⁄16" |
| Center case | 8" x 2 3⁄4" x2 3⁄8" |
| Mechanism case | 2 1⁄4" x 2 1⁄4" |
| Lever | 06 Lever - Standard |
| Trim | 996L |
| Projection | Pushbar neutral – 3 13⁄16" Pushbar depressed – 3 1⁄16" |
| Dogging | Comes standard |
| Handing | LHR |
| Finish | US26D (626) Satin Chrome |
| Fasteners and sex bolts | Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors. |
| Cylinder | 1 1⁄4" mortise, Less Cylinder (Cylinder Not Included) |
| Certifications | ANSI/BHMA A156.3 2014, Grade 1 |
Downloads:
Please Note: Bulk price rates are available! Call us at (855) 928-0349.
