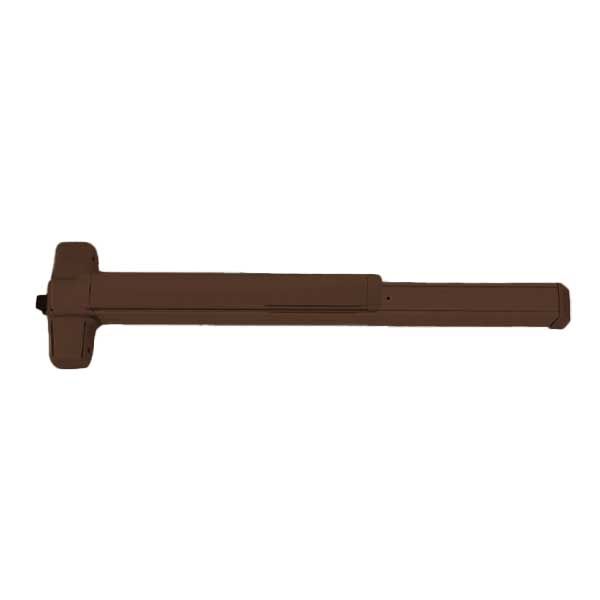

Von Duprin - 98EO - Rim Exit Device - Exit Only - No Trim - Dark Bronze Anodized Aluminum Finish - 3 Foot
Von Duprin - 98EO - Rim Exit Device - Exit Only - No Trim - Dark Bronze Anodized Aluminum Finish - 3 Foot
Von Duprin
Regular price
$1,251.40 USD
Regular price
$1,851.30 USD
Sale price
$1,251.40 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-VNDP-98EO-3-313
Item Number: XXXX
98 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 99 device has a smooth - non grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected.
Specifications
| Trim | No Trim - Exit Only |
| Device functions | Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device |
| Device lengths | 3' 2'4' to 3' (711mm to 914mm) Door size |
| Device centerline from finished floor |
39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion |
| Center case dimensions |
8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) |
| Mechanism case dimensions |
2 1⁄4" x 2 1⁄4" (57mm x 57mm) |
| Projection push bar |
Pushbar neutral – 3 13/16" (97mm) |
| Latch bolt | Deadlocking, 3/4" (19 mm) throw |
| Fasteners | Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal screws |
| Finish | Dark Bronze Anodized Aluminum |
| Dogging feature | Hex key dogging standard |
| Strikes | 299 – Dull black |
| Fire Rated | No |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
