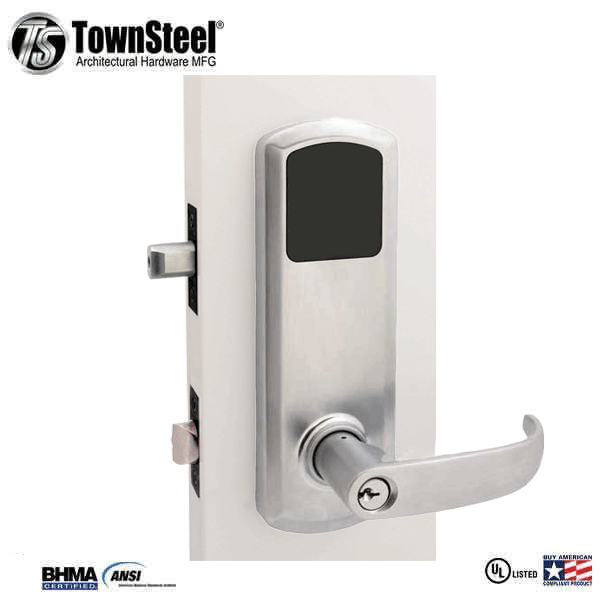

TownSteel - E-Genius 5000 - Interconnected Electronic Touch Keypad Lock - Entry - RFID & Wifi - 4" - On Center - Right Handed - Satin Chrome - Grade 1

TownSteel - E-Genius 5000 - Interconnected Electronic Touch Keypad Lock - Entry - RFID & Wifi - 4" - On Center - Right Handed - Satin Chrome - Grade 1

TownSteel

Regular price $529.19 USD
Regular price $555.05 USD Sale price $529.19 USD
Sale Sold out
Shipping calculated at checkout.

SLK-TNS-EG5RTT-SRH626-40WSC

The e-Genius 5000 is the only keyless double lock providing the ability to lock and unlock an interconnected dead-latch and deadbolt with a single lift of the lever from inside and outside of your home. Access your home with keyless freedom and convenience using a highly responsive, 12-key illuminated touch and fingerprint resistant keypad programmable with up to 400 user codes interchangeable with RFID keycards/stickers. Mechanical key override lock is available as an extra back-up. The e-Genius 5000 also comes with BLE or RF technology, available with our app.

  • Latchbolt can always be locked so that when shutting the door, it is automatically locked
  • Extended deadbolt
  • Right Hand
  • Sentinel Lever
  • Interconnected lock that can retract the deadbolt and latch bolt in a single motion
  • When locked, the outside lever can be rotated but will not retract the deadbolt or latch bolt
  • Wifi and RFID



Function Entry
Door Thickness:  1-3/4”
Backset 2-3/8″ – 2-3/4″ adjustable
Lock Body 4"
Trim
Clutched
Latch bolt: 1/2“ throw stainless steel deadlocking
Faceplate 1-1/8" x 2-1/4"
Deadbolt Strike 1-1/8″ x 2-3/4″ radius corners with security underplate
Key Override Yes
Cylinder 6 pin Schlage C keyway, standard
Power Supply
4 AA Alkaline batteries - No Hardwiring
Battery Life
Up to 1 year
Finish 626 - US19D - Satin Chrome
Handing  Right Handed
Certifications ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
UL/ULC -- UL 10C 3-hour rated
BAA -- Meets guidelines of the Buy American Act
ADA --- Meets requirements of the Americans with Disabilities Act
RoHS -- Meets requirements of EU RoHS Directive 2002/95/EC
Manufacturer Warranty 2-year limited for electronic
5-year limited for finish
10-year limited for mechanical
