TownSteel - DBM17 - Commercial Mortise Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome - Grade 1
TownSteel - DBM17 - Commercial Mortise Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome - Grade 1
TownSteel
Regular price
$111.72 USD
Regular price
$688.00 USD
Sale price
$111.72 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

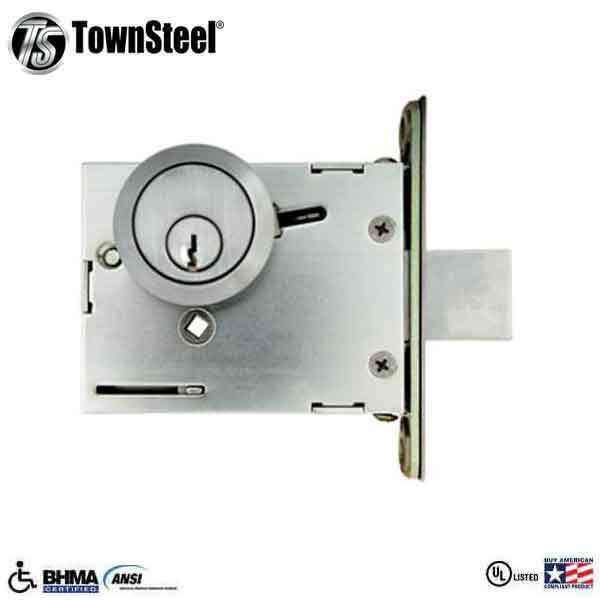

The DBM-17 is a heavy duty commercial quality deadbolt that provides a positive deterrent to forced entry. Designed for maximum security, the cylinder resists blows attempting to move the lock.
More Information Below
Specifications
| Application | To use as an auxiliary lock for quality residential and commercial buildings wherever additional security is desired |
| Door Thickness |
1-3/8”- 2” |
| Backset | 2-3/4″ standard |
| Deadbolt | Solid brass with hardened steel rod insert, 1″ throw |
| Strike | 1-1/8″ x 3-1/2″ |
| Faceplate | 1-1/8” x 3-5/8″ , square corner |
| Function | Single Cylinder with Thumb Turn |
| Cylinder | 6 pin solid brass cylinder, Schlage “C” keyway. |
| Keying |
Keyed different - KD (standard) |
| Finish | 626 - 26D - Satin Chrome, 605 - Bright Brass |
| Certifications |
ANSI/BHMA Meets or exceeds A156.5 Grade 1 requirements UL Listed 3-hour fire rating BAA Meets guidelines of the Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
