TELL - LC2682 - Standard Duty Cylindrical Leverset - Cortland - Entrance - 2 3/4" Backset - Satin Chrome - Grade 2

TELL - LC2682 - Standard Duty Cylindrical Leverset - Cortland - Entrance - 2 3/4" Backset - Satin Chrome - Grade 2

Tell

$113.84 USD
$113.84 USD
Sale Sold out
Shipping calculated at checkout.

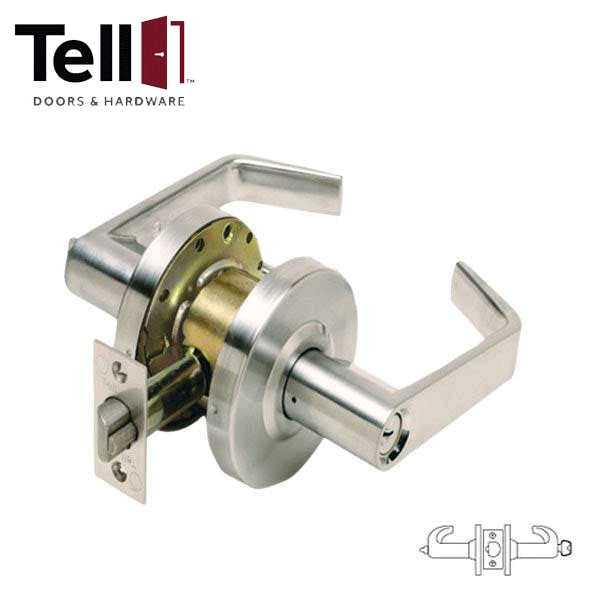

TELL LC2600 Series provides standard duty grade 2 performance to any home. TELL door lever locksets include cylinder locksets with a lever handle that allows doors to be opened with a natural downward hand motion. They include locksets that can be easily rekeyed without changing a device's bolt work. Door lever locksets are used to secure doors in offices, warehouse buildings, retail stores, residences, and more.

Feature

  • Grade 2 standard duty
  • 400,000 cycles
  • UL/ULC listed for 3-hour fire door
  • American Disabilities Act (ADA) ANSI A117.1
  • ANSI A156.2, Series 400
  • Latch bolt operated by lever from either side
  • Outside lever locked by turn button from inside
  • Unlocked by key from outside or rotating inside lever



Specifications

Function Entrance - Inside Button, Outside Keyed
Finish Satin Chrome
Chassis Cylindrical, steel-coated w/ zinc dichromate (corrosion resistance)
Lever Non-handed
Latch 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel)
Rose 3-1/4" diameter
Thru-bolts Removable thru-bolts standard
Backset 2-3/4
Strike Square corner 1-1/4" x 4-7/8" ANSI ASA Strike
Standard Cylinder Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD).
Keys Two nickel silver per lock lock
Door Range 1-3/8" to 2"
Door Preparation 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep.
Fire Rated UL/ULC listed for 3 hour fire door
Certifications ANSI A156.2, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code
Manufacturer's Warranty Limited Lifetime
