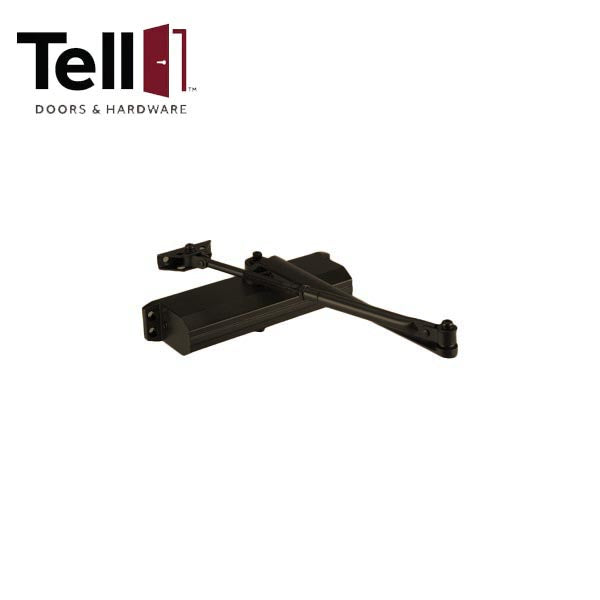

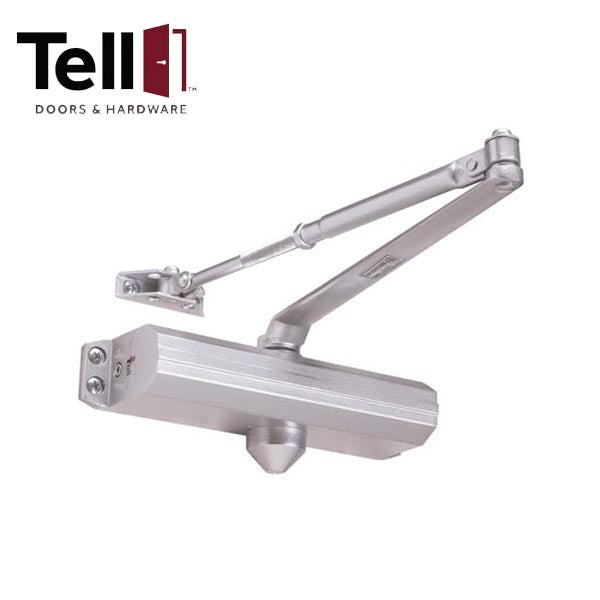

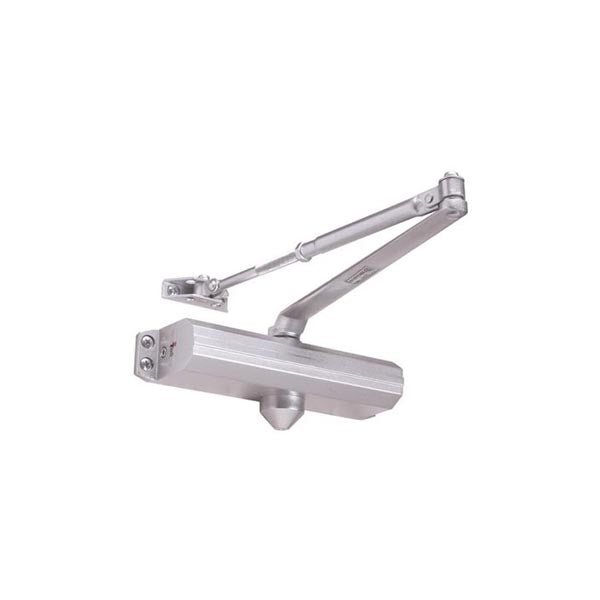

TELL - 600 Series - Heavy Duty Commercial Door Closer - Parallel Arm Bracket - Fixed Size - Size 4 - No Cover - Backcheck - Optional Finish

TELL - 600 Series - Heavy Duty Commercial Door Closer - Parallel Arm Bracket - Fixed Size - Size 4 - No Cover - Backcheck - Optional Finish

Tell

$140.40 USD
$175.50 USD $140.40 USD
Sale Sold out
Shipping calculated at checkout.
Finish

The 600 Series door closer is a grade 1, heavy duty cast aluminum surface applied door closer, designed for interior commercial use and comes with hardware for all installation applications. This closer complies with ANSI A156.4, UL/ULC listed up to three hours fire rated. Size 4.

    Specifications:

    Performance Complies with ANSI A156.4
    Grade 1, 2,000,000 cycles
    UL/ULC listed up to 3 hours fire rated
    Chassis Cast aluminum
    Handing Non-handed
    Mounting Tri-Pack – regular, top jamb and parallel arm applications
    Arm Forged steel
    Accommodates reveals up to 3 1/4”
    Adjustable extension arm
    Spring Power
    		 Size 4
    Backcheck Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door
    Valves Adjustable, independent
    Non-critical – sweep and latch
    Consistent closing speeds
    Fasteners Metal screws included for hollow metal and aluminum mounting applications
    Wood screws included for wood door mounting applications
    Thru-bolts optional
    Cover High impact plastic streamlined cover
    Door Range
    		 Up to 180 degrees
    Door Preparation
    		 9-1/16” horizontal x 3/4” vertical
    4-Hole mounting locations
    Retrofits traditional closer
    Warranty Lifetime limited
