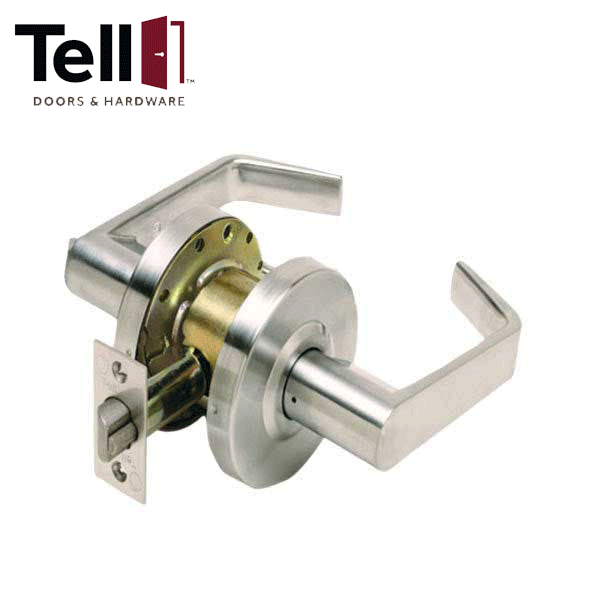

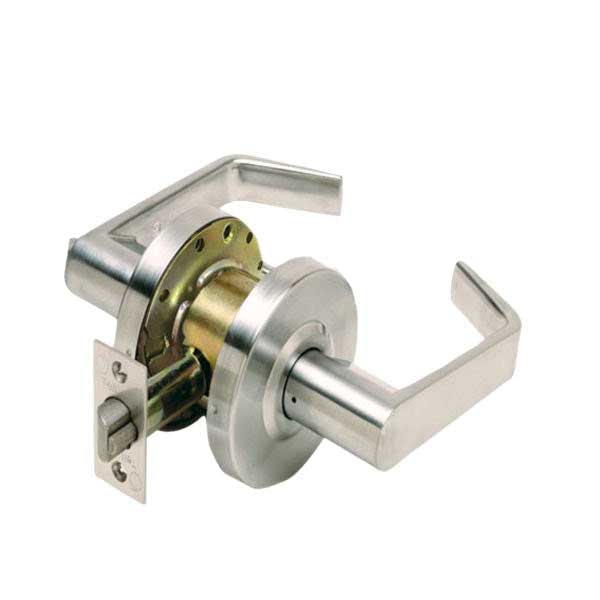

TELL - CL100984 - Standard Duty Cylindrical Leverset - Cortland - Privacy - 2 3/4" Backset - Satin Chrome - Grade 2
TELL - CL100984 - Standard Duty Cylindrical Leverset - Cortland - Privacy - 2 3/4" Backset - Satin Chrome - Grade 2
Tell
Regular price
$54.99 USD
Regular price
$66.05 USD
Sale price
$54.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-TELL-CL100984
TELL LC2676 Provides standard duty grade 2 performance to any home. TELL door lever locksets include cylinder locksets with a lever handle that allows doors to be opened with a natural downward hand motion. They include locksets that can be easily rekeyed without changing a device's bolt work. Door lever locksets are used to secure doors in offices, warehouse buildings, retail stores, residences, and more.
Feature
- Latchbolt operated by lever from either side
- Outside lever locked by push button on inside
- Unlocked by emergency release on outside, rotating inside lever, or closing door
Specifications
| Function | Privacy - Inside Unlocked, Outside Push Button |
| Finish | Satin Chrome |
| Chassis | Cylindrical, steel-coated w/ zinc dichromate (corrosion resistance) |
| Lever | Non-handed |
| Latch | 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel) |
| Rose | 3-1/4" diameter |
| Thru-bolts | Removable thru-bolts standard |
| Backset | 2-3/4 |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike |
| Door Range | 1-3/8" to 2" |
| Door Preparation | 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | ANSI A156.2, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code |
| Manufacturer's Warranty | Limited Lifetime |
