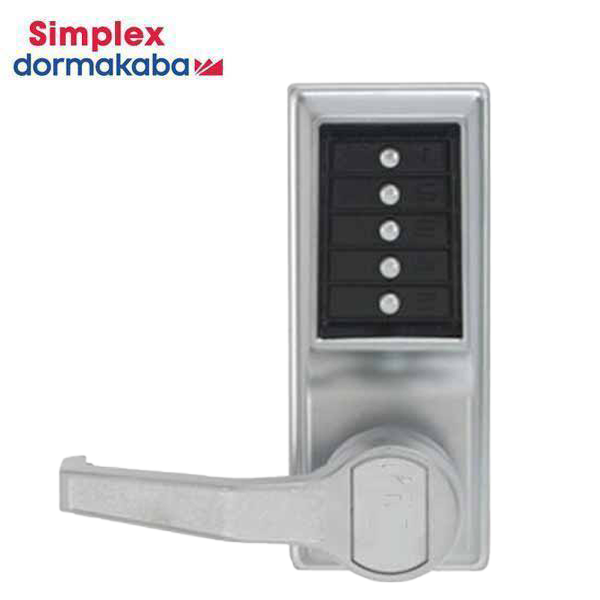

Simplex - LL1031 - Mechanical Pushbutton Cylindrical Lever Set - Passage - 2¾" Backset - Satin Chrome - LH/LHR

Simplex - LL1031 - Mechanical Pushbutton Cylindrical Lever Set - Passage - 2¾" Backset - Satin Chrome - LH/LHR

Simplex

Regular price $409.75 USD
Regular price $803.44 USD Sale price $409.75 USD
Sale Sold out
Shipping calculated at checkout.

SLK-KABA-LL1031-26D-41
Item Number: 7569

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex L1000 Series provides exterior access by combination, while allowing free egress. Combination & Passage Entry Only. No Key Override

Features:

  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing lock from the door
  • Factory-handed for Left Hand or Left Hand Reverse. Not field reversible
  • Pushbutton Access
  • Passage—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key


Specifications:

Construction:

Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers

Locking Device:

Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset (UL listed)

Numeric Keypad:

Vandal resistant, solid metal pushbuttons

Handing:

Left Hand or Left Hand Reverse

Finish:

Satin Chrome 26D (626)

Backset:

2¾" (70 mm) backset

Latch:

½" (13 mm) throw latch

Minimum Stile Recommended:

5" (127 mm)

Strike:

Standard strike plate; ASA strike plate

Door Preparation:

Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

Door Thickness:

1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors

Accessibility Standard:

Americans with Disabilities Act (ADA)

Durability:

D.O.D. Compliant 5220.22M for supplemental access control; weather resistant

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors

Warranty:

3 years manufacturer warranty
