Simplex - 7108 - Mechanical Pushbutton Deadbolt Keyless Lock - 2 3/8" Backset - Bright Brass

Simplex - 7108 - Mechanical Pushbutton Deadbolt Keyless Lock - 2 3/8" Backset - Bright Brass

Simplex

$221.70 USD
$264.25 USD $221.70 USD
Sale Sold out
Shipping calculated at checkout.

SLK-KABA-71080341
Item Number: 7928

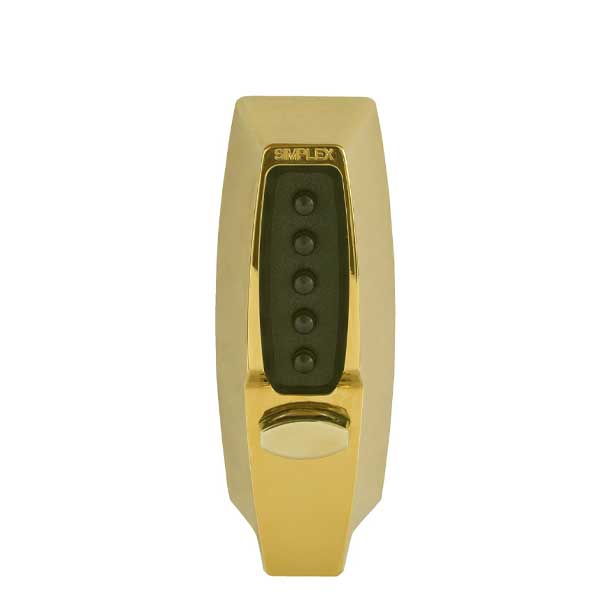

The Simplex 7108 Mechanical pushbutton Deadbolt Lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked.

Features:

  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Auxiliary Lock
  • Deadbolt—must be manually relocked
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing lock from the door
  • Field reversible Handing
  • Pushbutton Access


Specifications:

Construction:

 All metal cast front housing; force-resistant, clutch-protected exterior thumbturn

Locking Device:

 1" (25 mm) Tubular Deadbolt, flat front face plate 2⅜" (60 mm) backset

Numeric Keypad:

 Vandal resistant, solid metal pushbuttons

Handing:

 Field reversible

Finish:

 Bright Brass

Backset:

 2⅜" (60 mm) backset

Latch:

 1" (25 mm) tubular deadbolt

Minimum Stile Recommended:

 4" (102 mm)

Strike:

 Flat deadbolt strike plate

Door Preparation:
  • 1⅜" (35 mm) diameter through bore
  • 1" (25 mm) diameter cross bore
  • ¾" (19 mm) through bore
  • 2 x ¼" through bores

Door Thickness:

 1⅜" (35 mm) to 2¼" (57 mm), wood or metal

Durability:

 Weather resistant

Certification:

BAA/NAFTA Certified

Warranty:

1-year warranty


Downloads:


    Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page     here. Once you have the ticket contact SLK Hardware for the return.
