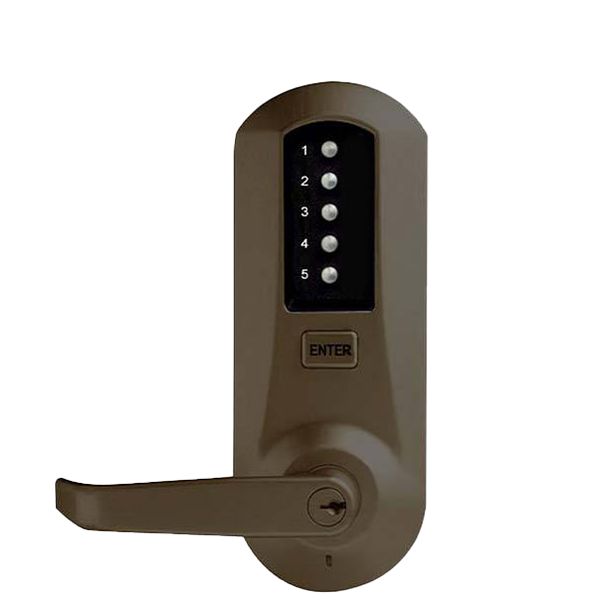

Simplex - 5021XK - Mechanical Pushbutton Cylindrical Lever Set - Kaba 90 - Winston Lever Set - 2¾" Backset - Oil Rubbed Bronze - Grade 1

Simplex - 5021XK - Mechanical Pushbutton Cylindrical Lever Set - Kaba 90 - Winston Lever Set - 2¾" Backset - Oil Rubbed Bronze - Grade 1

Simplex

$498.52 USD
$713.89 USD $498.52 USD
Sale Sold out
Shipping calculated at checkout.

SLK-KABA-5021XKWL-744-41
Item number: 5892

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. This fully mechanical lock eliminates the material and labor expense of battery replacements, The Simplex 5000 Series provides exterior access by combination, while allowing free egress.

Features:

  • Combination Entry
  • Key Override:  Key-in-lever Cylinder.
  • Exterior Combination Change
  • Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing the lock from the door
  • Non-handed, pre-assembled for left-hand door installations—easily changed in the field


    Specifications:


    Construction:

    		 Extra heavy-duty solid cast housings; solid cast levers.

    Locking Device:

    		 Cylindrical ½" (13 mm) throw latch, floating face plate, 2¾" (70 mm) backset (UL listed)

    Numeric Keypad:

    		 Vandal resistant, metal pushbuttons

    Handing:

    		 Non-handed, pre-assembled for left-hand door installations—easily changed in the field

    Finish:

    		 Oil Rubbed Bronze Finish

    Key Override:

    		 K-I-L, Kaba Cylinder (Kaba 90 Keyway) included

    Backset:

    		 2¾" (70 mm) backset

    Latch:

    		 ½" (13 mm) throw latch

    Minimum Stile Recommended:

    		 5" (127 mm)

    Door Preparation:

    		 Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

    Door Thickness:

    		 Cylindrical: 1⅜" (35 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (51 mm).

    Accessibility Standard:

    Americans with Disabilities Act (ADA)

    Certification:

    ANSI/BHMA Grade 1 Certified

    Fire Rating:

    3-hour UL/ULC fire rating for "A" label doors

    Warranty:

    3 years manufacturer warranty
