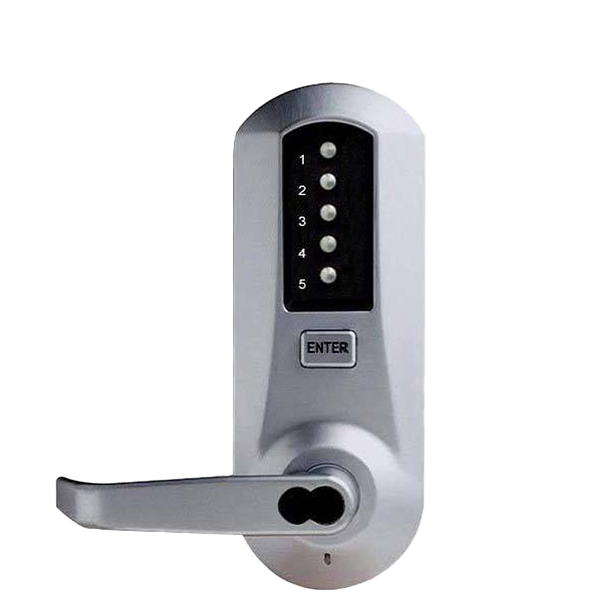

Simplex - 5021B - Mechanical Pushbutton Cylindrical Lever Lock - SFIC - Winston Lever - 2¾" Backset - Satin Chrome - Grade 1
Simplex - 5021B - Mechanical Pushbutton Cylindrical Lever Lock - SFIC - Winston Lever - 2¾" Backset - Satin Chrome - Grade 1
Simplex
Couldn't load pickup availability
SLK-KABA-5021BWL26D41
Item number: 10230
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. This fully mechanical lock eliminates the material and labor expense of battery replacements, The Simplex 5000 Series provides exterior access by combination, while allowing free egress.
Features:
- Cylindrical Lock with a floating face plate,
- Single access code—one easy-to-manage code for all users.
- Lock is easily programmed via keypad without removing the lock from the door
- Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Small Format Interchangeable Cores (SFIC)
Specifications:
| Construction: | Extra Heavy-Duty, Solid Cast Housings |
| Locking Device: | Cylindrical Latch |
| Numeric Keypad: | Vandal resistant, solid metal pushbuttons |
| Handing: | Non-handed operation - fits left and right swinging doors |
| Finish: | Satin Chrome 26D (626) |
| Key Override: | Small format—Best and equivalents (6 or 7-pin length); core not included |
| Backset: | 2-3/4" (70mm) |
| Latch: | 1/2" Throw Latch |
| Minimum Stile Recommended: | 5" (127 mm) |
| Strike: | Standard strike plate; ASA strike plate |
| Door Preparation: | Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes. |
| Door Thickness: | Cylindrical: 1⅜" (35 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (51 mm). Exit Trim and Mortise: 1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm). |
| Accessibility Standard: |
Americans with Disabilities Act (ADA) |
| Certification: | ANSI/BHMA Grade 1 Certified |
| Fire Rating: | 3-hour UL/ULC fire rating for "A" label doors |
| Warranty: | 3 years manufacturer warranty |
Downloads:
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact SLK Hardware for the return.
