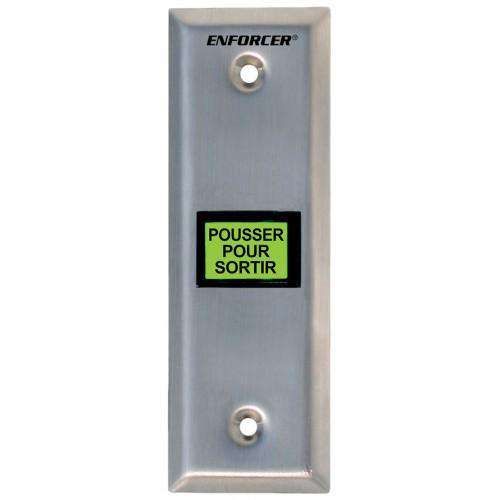

Seco-Larm - Slimline LED Illuminated RTE Wall Plate - Built-in Timer
Seco-Larm - Slimline LED Illuminated RTE Wall Plate - Built-in Timer
Seco-Larm
Regular price
$45.88 USD
Regular price
$55.06 USD
Sale price
$45.88 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-SLM-SD-7103GC-PTQ
Item number: 6295
- Momentary switch, D.P.S.T., NO/NC contacts rated 5A@250VAC max.
- CE and UL approved switch
- Stainless-steel slimline plate
- Six plug-in terminals
- Six color-coded, 12", AWG 18 wire leads with easy-to-attach spade lugs for fast installation
- Plastic terminal protector for dividing individual terminals
- Mechanical lifetime 2,000,000 operations
- LED (12V, 35,000-hour life)
- 680Ω, 0.5W resistor for 24V LED operation included
- Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
- Built-in timer (1~180 sec.)
- Buzzer output for audio status
Contact Rating | NO/NC contacts rated 5A@250VAC max |
Built-in Timer | Yes (1~180 sec.) |
Material | Stainless-steel |
Dimensions | 4-1/2”x1-1/2"x1-15/16" (114x38x49mm) |
