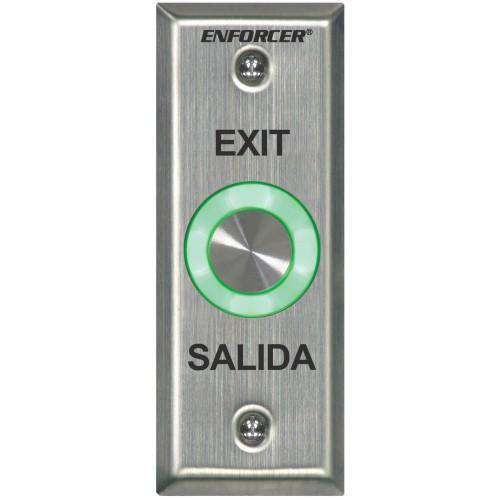

Seco-Larm - Piezoelectric Illuminated RTE Wall Plates w/ Timer & Pushbutton - Slimline
Seco-Larm - Piezoelectric Illuminated RTE Wall Plates w/ Timer & Pushbutton - Slimline
Seco-Larm
Regular price
$91.36 USD
Regular price
$139.20 USD
Sale price
$91.36 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-SLM-SD-6176-SS1Q
Programmable Red/Green Round Button, with "EXIT" & "SALIDA"
-
Piezoelectric request-to-exit plates for indoor or outdoor
use (IP65) -
No moving parts for heavy
duty use -
LED ring around button changes from green to red or red to green when the button
is pressed - Timed or toggle output
-
Relay rated 2.5A@24VDC with two individually programmable
outputs (NO/NC)
| Type | RTE Plates with piezoelectric pushbuttons |
| Operating Voltage | 12~24 VDC |
| Current Draw | 100mA@12VDC |
| Contact Rating | 2.5A@24VDC |
| Ring LED Default- Standby | Red |
| Ring LED Default- Active | Green |
| Output Time | 1~30 s, Toggle |
| IP Rating | IP65 |
| Operating Temperature | 32º~158º F (0º~70º C) |
| Material | Stainless steel |
| Weight | 2.6-oz (74g) |
Downloads:
- Datasheet
- Manual
