Seco-Larm - No Touch - RTE Plate w/ Adjustable Delay Timer - Outdoor Use - Slimline
Seco-Larm - No Touch - RTE Plate w/ Adjustable Delay Timer - Outdoor Use - Slimline
Seco-Larm
Regular price
$96.76 USD
Regular price
$171.08 USD
Sale price
$96.76 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-SLM-SD-9163-KSQ

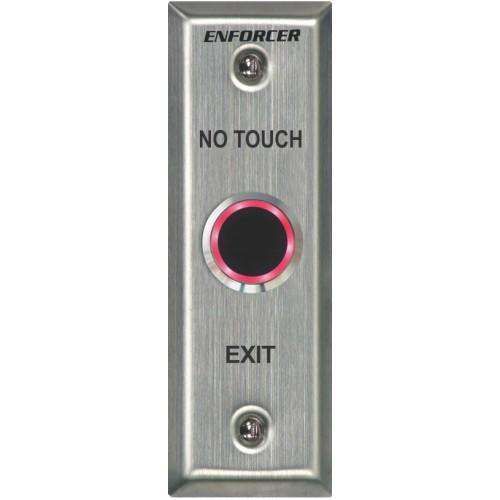

ENFORCER SD-9163-KSQ "No Touch" Request-To-Exit Plates use IR technology to request egress from a protected area or to activate a device with the simple wave of a hand. Since they require no touch, these plates are ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
-
Weather-resistant (IP65) for
outdoor use -
Clean and simple no-touch operation reduces the risk of
cross-contamination -
Adjustable sensor range up to
7" (18cm) -
Stainless-steel plate, available in slimline
or single-gang -
1A relay, adjustable trigger duration
0.5~20 seconds -
Selectable LED colors (turns from red to green or green to red) to show if the sensor
is activated
| Type | "No Touch" Request-to-Exit Plates with Adjustable Delay Timer, for Outdoor Use |
| Current Draw | Standby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC |
| Sensing Range | 2"~7" (5~18cm) |
| Operating Voltage | 12~24 VDC |
| Reaction time | 10mS |
| LEDs - Red | Standby (Colors are reversible.) |
| LEDs - Green | Triggered (Colors are reversible.) |
| Relay Type | Form C dry contact 1A@30VDC |
| Output Time | 0.5~30 s, toggle |
| Switching Capacity | 1.2A@24VDC |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 4-1/2" x 1-1/2" x 1-1/2" (115 x 39 x 39 mm) |
| Weight | 61g |
| Enclosure | IP65 |
