Seco-Larm - Outdoor Gate Maglock- 1200 lb Holding Force - Face Mount - Weldable - UL Listed
Seco-Larm - Outdoor Gate Maglock- 1200 lb Holding Force - Face Mount - Weldable - UL Listed
Seco-Larm
Regular price
$379.33 USD
Regular price
$828.35 USD
Sale price
$379.33 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-SLM-E-942FC-1K3SQ
Item number: 6287

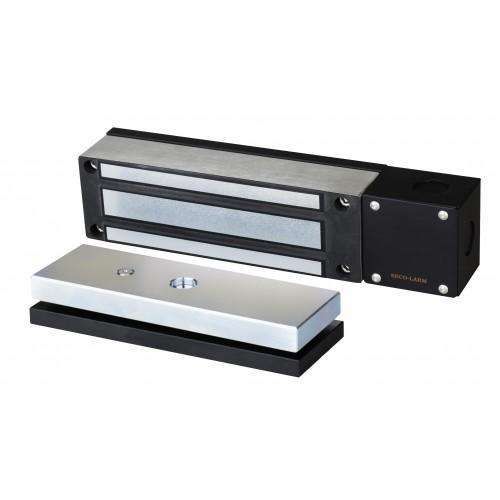

Electromagnetic Gate Lock with brackets for armature and magnet.
The E-942FC-1K3SQ is primarily designed for swinging gates.
- For most types of outdoor sliding and swinging electric gates
- Includes a magnetic lock with brackets for armature and magnet
- Can be welded or bolted directly to gate
- Brackets are zinc-plated for corrosion resistance
- Black finish to match most gates
- Water- and vandal-resistant attractive stainless-steel finish
- Maintenance-free, factory-sealed design
- Fail-safe operation (releases if power is removed)
- Mount vertically or horizontally
- Four knockouts on junction box
- Adapter and mounting hardware included
- Face mount
Holding Force | 1,200-lb (544kg) |
Operating Voltage | 12VDC or 24VDC |
Current Draw | 500mA@12VDC, 250mA@24VDC |
Operating Temperature | 14º~131º F (-10º~55º C) |
Certification | cUL, UL, CE, RoHS (magnetic lock only) |
Weight | 15.9-lb (7.75kg) |
Maglock & Armature Weight (Approx.) | 11-lb (5kg) |
Bracket Weight (Approx.) | 4.6-lb (2.1kg) |
