Seco-Larm - Magnetic Door Holder - Surface Mount - 33lb Holding Force - UL Listed

Seco-Larm - Magnetic Door Holder - Surface Mount - 33lb Holding Force - UL Listed

Seco-Larm

$115.32 USD
$274.16 USD $115.32 USD
Sale Sold out
Shipping calculated at checkout.

SLK-SLM-DH-151SQ
Item Number: 8874

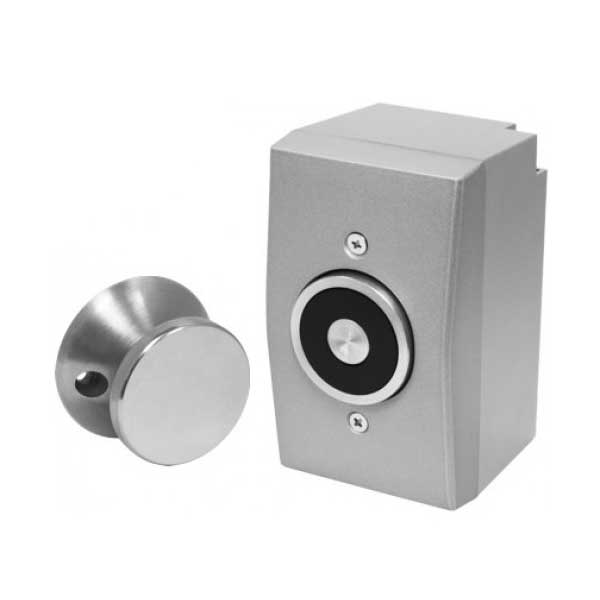

The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.

  • For use with door closers to control the release and closing of residential, commercial, and public area doors
  • Adjustable armature plate reduces installation time and adjusts to door alignment changes
  • Low profile design
  • Holding force – 33-lb (15kg)
  • 3 voltages: 12/24 VAC/VDC, and 120VAC
  • Cast aluminum faceplate
  • No residual magnetism for easy release
  • Built-in voltage spike suppressor
  • Use with SECO-LARM door closers

Specifications


Holding Force 33-lb (15kg)
Installation Surface-mount
Operating Voltage 12/24 VAC/VDC, 120VAC
Current Draw 52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31mA@24VDC, 24mA@120VAC
Magnet Box Weight 1-lb 6.4-oz (920g)
Door Armature Weight 8.1-oz (230g)
Electromagnet Dimensions 2-3/4" x 4-9/16" x 3" (70 x 116.5 x 76 mm)
Armature Dimensions 2-9/16" x 2-9/16" x 1-9/16" (65 x 65 x 40 mm)
