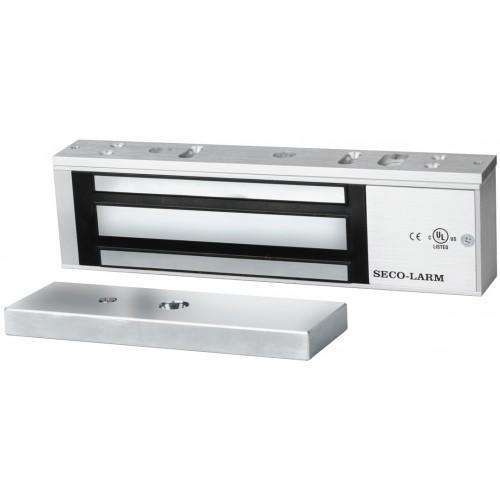

Seco-Larm - Single Door Maglock - 1200-lb Holding Force - UL Listed

Seco-Larm - Single Door Maglock - 1200-lb Holding Force - UL Listed

Seco-Larm

$164.22 USD
$377.70 USD $164.22 USD
Sale Sold out
Shipping calculated at checkout.

SLK-SLM-E-941SA-1200
Item number: 6282

  • 1,200-lb Holding force
  • Anodized aluminum housing (US 28)
  • Selectable 12/24 VDC operation
  • No residual magnetism
  • MOV surge protection
  • Adjustable mounting bracket
  • Complete mounting hardware for typical installations
  • “L” and “Z” brackets available for easy mounting
  • LIFETIME LIMITED WARRANTY!
  • Detachable faceplate
Holding Force 1,200-lb (545kg)
Operating Voltage 12/24 VDC±10%
Current Draw 500mA@12VDC, 250mA@24VDC
Operating Temperature 14º~131º F (-10º~55º C)
Electromagnet Dimensions 10-1/2"x1-5/8"x2-5/8" (268x42x67 mm)
Armature Dimensions 7-1/4"x5/8"x2-3/8" (185x16x61 mm)
Case Shipping Weight 54-lb (24.5kg)
Weight 11-lb (5kg)
Case Quantity 5 pcs
