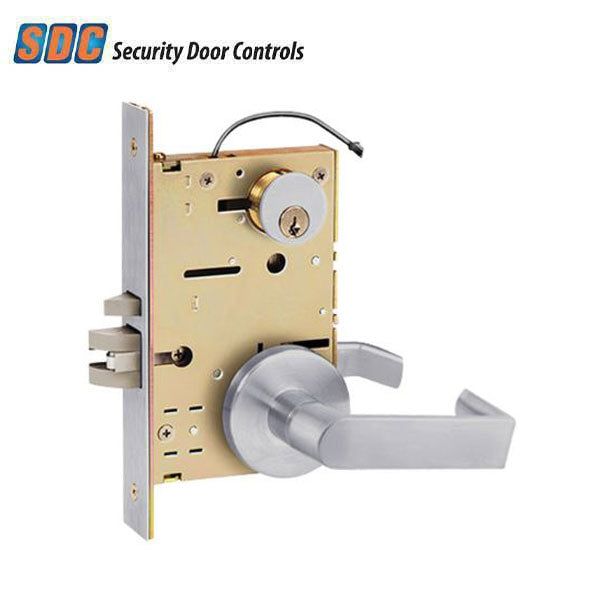

SDC - Z7850LQE - Solenoid Controlled Mortise Lock - Fail Safe - Eclipse Rose - Left Hand - 12/24VDC - Satin Chrome - Fire Rated - Grade 1

SDC - Z7850LQE - Solenoid Controlled Mortise Lock - Fail Safe - Eclipse Rose - Left Hand - 12/24VDC - Satin Chrome - Fire Rated - Grade 1

SDC

Regular price $917.35 USD
Regular price $1,100.81 USD Sale price $917.35 USD
Sale Sold out
Shipping calculated at checkout.

SLK-SDC-Z7850LQE-626

7800 Pro series models incorporate a grade 1 heavy duty mortise lockset and vandal resistant clutch – proprietary to all SDC locksets. They replace most brands of mechanical locksets making them fully compatible with new and retrofit applications and provide field selectability of all operational attributes. All SDC mortise locks feature a mortise cylinder to manually retract the latch.

Features:

  • Heavy duty mortise design
  • New or retrofit construction
  • Vandal resistant clutch
  • Solenoid control
  • Key latch retraction
  • Fail Safe

Specifications:

Construction: Heavy Duty Steel
Lock Function: Mortise, Solenoid Control - Failsafe - Locked Outside Only
Door Thickness: 1-3/4"
Backset: 2-3/4"
Faceplate:  8-1/32” x 1-5/16” x 7/32”
Door prep: ANSI A156.13
Strike: Standard ANSI 47/8”
Case:  6” x 4” x 1”
Latchbolt: 3/4” Throw, Stainless Steel, Anti-Friction
Deadlatch: Above Latchbolt
Input: 12/24 VDC ± 10%
Lever: Eclipse Rose
Handing: Left Hand
Current Draw: 600 mA @ 12 VDC; 300 mA @ 24 VDC
Monitoring Contacts: SPDT 5 Amps @ 30 VDC Resistive
Finish: 626 - Satin Chrome
Fire Rated: UL 10C Positive Pressure Fire Tests of Door Assemblies
Certifications: ANSI A156.13, UL Listed, CSFM Listed
Warranty: 5-Year Manufacturer Warranty
