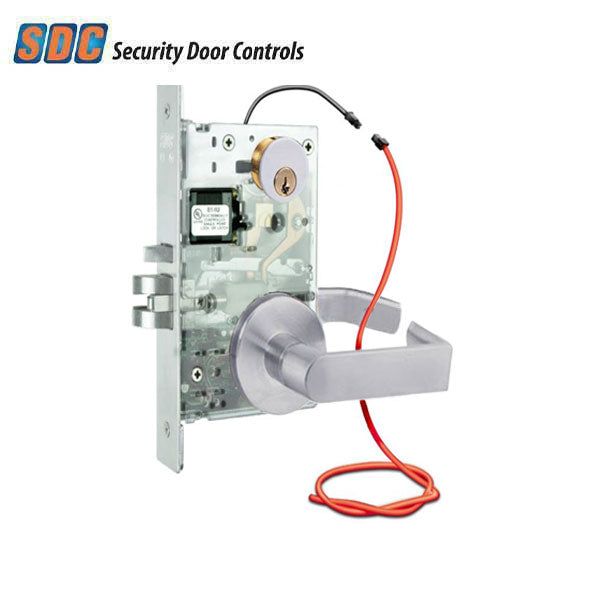

SDC - Z7652LQE - Electrified Mortise Lock - MLR - Fail Secure - Eclipse Rose - Optional Handing - 24VDC - Satin Chrome - Fire Rated - Grade 1
SDC - Z7652LQE - Electrified Mortise Lock - MLR - Fail Secure - Eclipse Rose - Optional Handing - 24VDC - Satin Chrome - Fire Rated - Grade 1
SDC
Regular price
$1,264.16 USD
Regular price
$1,517.00 USD
Sale price
$1,264.16 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-SDC-Z7652LQE-626
SDC’s 7600 series motorized latch retraction controlled mortise locksets incorporate a grade 1 heavy duty mortise lockset and vandal resistant clutch – proprietary to all SDC locksets. The motorized latch retraction feature is designed for use on fire rated doors to provide access control and building and fire life safety compliance. Door stays latched even when de-energized. Ideal for automatic door operator applications. All SDC mortise locks feature a mortise cylinder to manually retract the latch.
Features:
- Heavy duty mortise design
- New or retrofit construction
- Vandal resistant clutch
- MLR control
- Key latch retraction
- Field selectable function
- Field reversible handing
- Schlage trim compatible
Specifications:
| Construction: | Heavy Duty Steel |
| Lock Function: | Mortise, MLR Control - Failsecure - Locked Outside Only |
| Door Thickness: | 1-3/4" |
| Backset: | 2-3/4" |
| Faceplate: | 8-1/32” x 1-5/16” x 7/32” |
| Strike: | Standard ANSI 47/8” |
| Case: | 6” x 4” x 1” |
| Latchbolt: | 3/4” Throw, Stainless Steel, Anti-Friction |
| Deadlatch: | Above Latchbolt |
| Input: | 24 VDC ± 10% |
| Lever: | Eclipse Rose |
| Handing: | Left Hand/Right Hand |
| Current Draw: | 620 mA Inrush; 160 mA Continuous |
| Monitoring Contacts: | SPDT 5 Amps @ 30 VDC Resistive |
| Finish: | 626 - Satin Chrome |
| Fire Rated: | UL 10C Positive Pressure Fire Tests of Door Assemblies |
| Certifications: | UL Listed |
| Warranty: | 5-Year Manufacturer Warranty |
