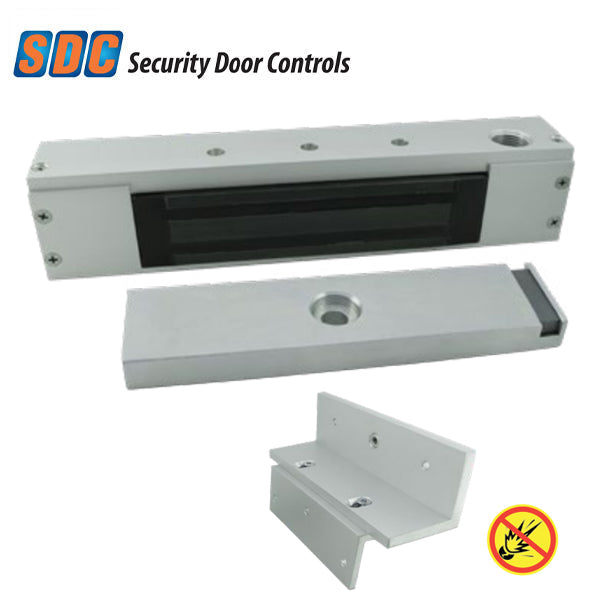

SDC - EP17624TJ - Explosion-Proof Electromagnetic Lock - Single - Top Conduit - 600lbs
SDC - EP17624TJ - Explosion-Proof Electromagnetic Lock - Single - Top Conduit - 600lbs
SDC
Regular price
$3,226.52 USD
Regular price
$3,871.82 USD
Sale price
$3,226.52 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-SDC-EP17624TJ-630
SDC’s EP17624 Series Explosion-Proof Electromagnetic Locks are specifically designed for applications where flammable vapors are cause for concern, like clean rooms, chemical plants, or refinery environments by eliminating the sparks or arc in the magnetic lock.
Features:
- Hazardous location design
- Explosion-proof epoxy sealed
- Corrosion-resistant
- Conduit chamber with terminal block
- Interlocking quick mount assembly
- Voltage and current spike protection
- Door position status (DPS)
| Model | EP17624TJ |
| Housing | Aluminum |
| Conduit Location | Top |
| Mounting | Pull-Side, Top Jamb Z Bracket Included |
| Holding Force | 600 lbs |
| Dimensions | 101/2” x 2” x 13/4” Housing 71/8” x 13/4” x 3/4” Armature |
| Weight | 10 lbs |
| Input | 24 VDC ± 10% |
| Current Draw | 250 mA |
| Door Position Status (DPS) | SPDT 100 mA @ 30 VDC Resistive |
| Certifications | UL Classified for Hazardous Locations Class 1, Division 2 |
| Warranty | 5 Year Manufacturer Warranty |
Downloads:
