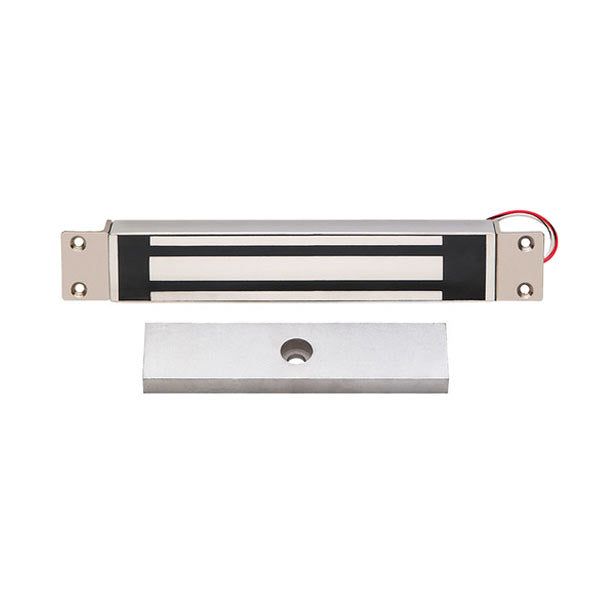

SDC - 1591U - Mortise Sliding Door Single Magnetic Lock - 850lbs. - 12/24VDC - Stainless Steel - Grade 1

SDC - 1591U - Mortise Sliding Door Single Magnetic Lock - 850lbs. - 12/24VDC - Stainless Steel - Grade 1

SDC

Regular price $460.93 USD
Regular price $566.23 USD Sale price $460.93 USD
Sale Sold out
Shipping calculated at checkout.

SLK-SDC-1591U-630

SDC's sliding door magnetic mortise lock series is a compact mortise electromagnetic lock with 850lbs of holding power packed into a small steel case. The lock is ideal for securing sliding or swinging, manual or automatic doors. Its durability for high-frequency use and its mortise installation make it the choice of specification writers, owners, and architects.

With only two parts, the lock mortised in the frame and the armature in the door, the lock secures the door in a closed position. When power is cut the lock releases instantly. When used with industrial sliding doors, two locks may be used to provide up to 1700lbs of holding power.

Features:

  • Compact mortise stainless steel case
  • ANSI/BHMA Grade 1 Compliant
  • Field selectable dual voltage
  • Voltage and current spike protection
  • UL Listed

Specifications:

Construction: Stainless Steel
Lock Function: Sliding Electromagnetic Lock
Holding Force: 850 lbs
Voltage: 12/24 VDC ± 10% Field Selectable
Current: 350 mA @ 24 VDC
700 mA @ 12 VDC
Lock Dimensions: 10"L x 1-7/16"W x 1-1/4"D
Armature Dimensions: 6-5/16"L x 1-1/2"W x 1-1/4"D
Certifications: ANSI/BHMA Grade 1 Compliant, UL Listed
Warranty: 5-Year Manufacturer Warranty
