Sargent - 8815 - Rim Exit Device with Trim Lever - Satin Stainless Steel - Passage Only - Remote Latch Retraction - 36" - Grade 1

Sargent - 8815 - Rim Exit Device with Trim Lever - Satin Stainless Steel - Passage Only - Remote Latch Retraction - 36" - Grade 1

Sargent

$1,766.60 USD
$2,119.92 USD $1,766.60 USD
Sale Sold out
Shipping calculated at checkout.

SLK-SRG-56-8815-ETL-32D

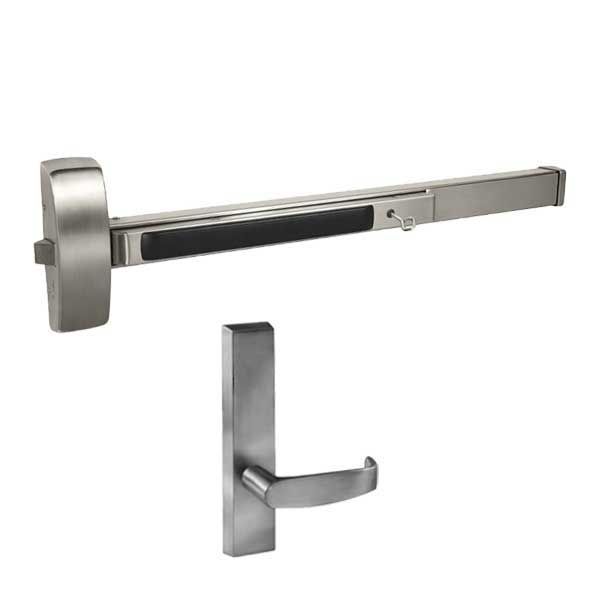

This is a 8815 Rim Exit Device with 700 ET Trim Lever - Passage Only - Remote Latch Retraction

Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.

Features

  • Designed for standard width stile applications on wood and metal doors
  • Single point rim latching device
  • Modular construction, maintenance-free design
  • Few moving parts
  • Remote Latch Retraction
  • ANSI/BHMA Grade 1
  • UL Fire and Panic listed
  • Single or double door applications with mullion
  • Made from 61% post-consumer recycled content
  • 5 year manufacturers warranty


Specifications

Device Function 15 - Passage Only (No Cylinder)
ANSI Function 14 - Passage Only (No Cylinder)
Mechanical Function 56 - Remote Latch Retraction
Trim  Rim Exit Device with Trim Lever
Trim description 700 ET Trim
Lever Style  L Lever. 2-1/2" Projection
Trim Size 8-1/16" H x 1-13/16" W
Pushbar Projection 2-1/8" - 3"
Cylinder No Cylinder
Latch Bolt Stainless Steel 3/4" Throw
Exit Device length 33" to 36" (84cm to 91cm) No cutting required for 36" (91cm) door
Door Thickness
 1-3/4" to 2-1/4"
Stile 4-1/2" (114mm) minimum stile width
Mounting Supplied standard with wood and machine screws
Dogging Hex key dogging standard on non fired rated devices
Strikes 649 Strike supplied standard for panic & fire rated openings
Fire Rated  UL Fire rated for 3 Hours
Certifications ANSI A156.3 – 2008 Grade 1
