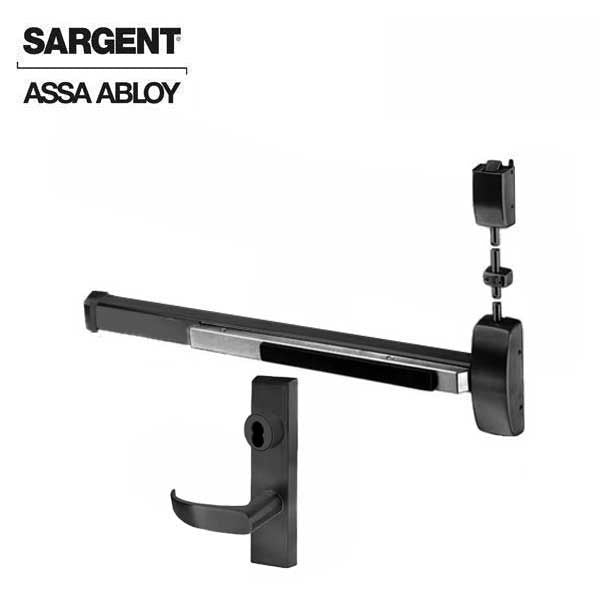

Sargent - 8713F - Surface Vertical Exit Rod - Top Latching - Less Cylinder - Entrance - 36" x 84" - Black Suede - Fired Rated - Grade 1

Sargent - 8713F - Surface Vertical Exit Rod - Top Latching - Less Cylinder - Entrance - 36" x 84" - Black Suede - Fired Rated - Grade 1

Sargent

$1,738.81 USD
$1,679.32 USD $1,738.81 USD
Sale Sold out
Shipping calculated at checkout.
Handing
Fire Rating

SLK-SRG-LC-12-NB-8713F-36Wx84H-ETP-646-LHR-BSP

The 8700 Series offers two point latching with vertical rods mounted to the surface of the door face. It provides a top and bottom latch which can be adjusted via the center case. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series can be used for single and double door applications and is available with hurricane and windstorm resistance certifications. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.

Features

  • Single point top latching
  • Top latch projection adjustable through center case
  • Tripping potential removed - no bottom strike
  • Opens if Deadbolt Unlocked and Stop Button not set
  • Few moving parts
  • ANSI/BHMA Grade 1
  • UL Fire and Panic listed
  • Made from 61% post-consumer recycled content
  • 5 year manufacturers warranty

Specifications

Device Function 13 - Entrance - Outside Keyed. Inside lever rigid. locked/unlocked by thumbturn
ANSI Function 08 - Key outside unlocks/locks trim
Trim Rim Exit Device with Trim Lever
Trim Description 700 Series ET Trim
Lever Style P Lever - 3" (76mm) Projection
Handing Left Hand Reverse/Right Hand Reverse options
Door Type Wood or metal doors
Pushbar Projection 2-1/8" (54mm) - 3" (76mm)
Rail Size 33"-36" door widths
Cylinder Less Cylinder
Door Thickness
 1-3/4" to 2-1/4"
Stile 4-1/2" (114mm) minimum stile width
Device center line from 41" (1041mm)
Door/Opening Height 120" (3048mm) Max Door Opening
Dogging Hex Key dogging not available on fire rated
Strike 646 Top Strike (Panic and Fire Rated)
Center Case Dimensions 8-3/8" (213mm) x 2-5/8" (67mm)
Fire Rated  Optional UL Fire rated for 3 Hours
Certifications ANSI A156.3 – 2008 Grade 1
Manufacturer's Warranty 5 Years
