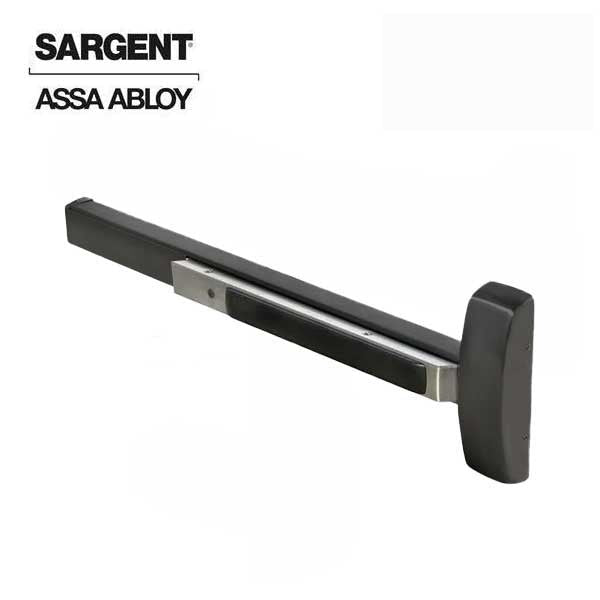

Sargent - 8610F - Concealed Vertical Exit Rod - Passage (Exit Only) - Electric Options - 36" x 84" - Black Suede - Grade 1

Sargent - 8610F - Concealed Vertical Exit Rod - Passage (Exit Only) - Electric Options - 36" x 84" - Black Suede - Grade 1

Sargent

$1,505.12 USD
$1,679.32 USD $1,505.12 USD
Sale Sold out
Shipping calculated at checkout.
Handing
Latch

SRG-56-AD-8610F-36wx96h-EO-640x640-RHR-BSP

Designed for standard width single or double doors, the 8600 Series features vertical rods concealed within the door for added security and enhanced aesthetics. Equally suited for single door and double egress applications. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series is available with hurricane and windstorm resistance certifications. Ideal for schools, offices, and hospitals.

Features

  • Designed for standard width stile applications on aluminum doors
  • Concealed rods for security and aesthetics
  • Single or double door applications
  • Optional Handing
  • Optional Motorized Latch Retraction
  • ANSI/BHMA Grade 1
  • UL Fire and Panic listed
  • Made from 61% post-consumer recycled content
  • 5 year manufacturers warranty

Specifications

Device Function 10 - Passage, (Exit Only)
ANSI Function 01 - Passage (no cylinder)
Handing Left Hand Reverse/Right Hand Reverse
Door Type Aluminum Doors
Pushbar Projection 2-1/8" (54mm) - 3" (76mm)
Rail Size 33"-36" door widths.
Door Thickness
 1-3/4" to 2-1/4"
Stile 4-1/2" (114mm) minimum stile width
Device center line from Finished floor 41"(1041mm), 38"(965mm) for elementary schools
Electric options 56 - Remote Latch Retraction
Door/Opening Height 120" (3048mm) Max Door Opening
Mounting Supplied standard with wood and machine screws
Dogging Hex dogging standard
Strike 640 for Top & Bottom Strike
Center Case Dimensions 8-3/8" (213mm) x 2-5/8" (67mm)
Certifications ANSI A156.3 – 2008 Grade 1
Manufacturer's Warranty 5 Years
