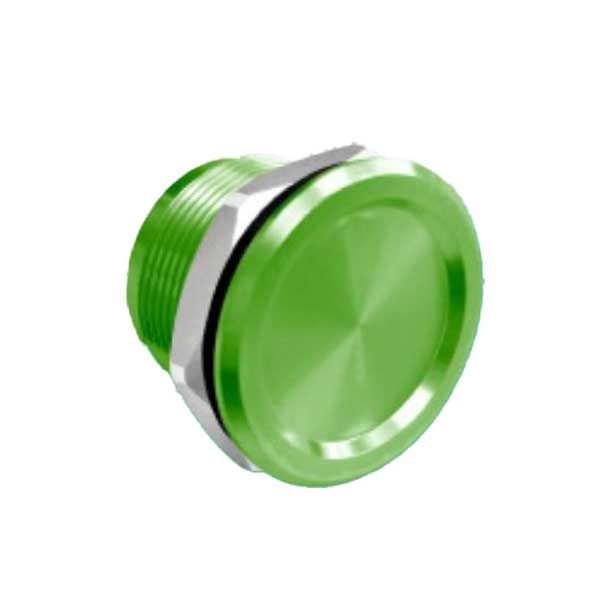

Rosslare - PX-13M - Piezoelectric Switch - 0-30 VDC - IP68 - Green

Rosslare - PX-13M - Piezoelectric Switch - 0-30 VDC - IP68 - Green

Rosslare

Regular price $18.74 USD
Regular price $20.25 USD Sale price $18.74 USD
Sale Sold out
Shipping calculated at checkout.

SLK-ROS-PX-13M

Rosslare's PX-13 is a general purpose high-performance 22-mm panel-mounted normally open (N.O) piezoelectric switch suited for long-life and rugged-use applications. Made from AL6061 aluminum alloy material with Type ii anodization. The PX-13 requires no external power source to operate; it is anti-vandal, water-resistant, and weather-resistant, and can be operated with fingers, gloves, and through elastomeric overlays. The piezoelectric switches are compatible with Rosslare’s controllers, security systems, and many third party systems.

Features

  • Easy to install and use
  • Supports a wide range of switch voltages from 0 to 30 VDC
  • Piezoelectric technology allows sensing actuation within a solid metal enclosure, making the devices rugged and waterproof; meets IP68
  • Fully-potted design prevents penetration of dirt, dust and water
  • Require no operating power, capable of actuating a dry contact input
  • SMT designed electronics for higher quality, superior performance, and reduced cost
  • Compatible with Rosslare’s access controllers as a REX or a system input (alarm or event)
  • No polarity considerations for the switch
  • Meets RoHS requirements

      Specifications:

      Switch Voltage: 0 VDC to 30 V AC/DC
      Switch Current: 1 A (max)
      Wire Leads: 2 x 24 AWG 280 mm (11.0 in.) wires

      2-Wire Interface:

      No polarity
      Button Life: Up to 20 million cycles
      Impulse Time: >50 ms (on actuation)
      Dimensions:
      Height: 0.8 in. Diameter: 1.2 in.
      Standard Thread: 0.9 in.
      Product Warranty: Lifetime Warranty
      Device Certifications: IP68
