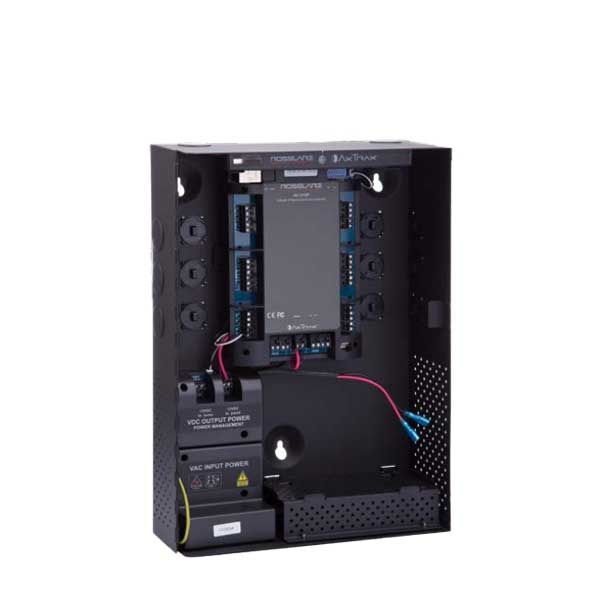

Rosslare - AC215IP - Scalable Networked Access Control Panel - Enclosed - 2 Readers - TCP - IP - 30K Users - 20K Event History - 12VDC

Rosslare - AC215IP - Scalable Networked Access Control Panel - Enclosed - 2 Readers - TCP - IP - 30K Users - 20K Event History - 12VDC

Rosslare

Regular price $519.98 USD
Regular price $560.78 USD Sale price $519.98 USD
Sale Sold out
Shipping calculated at checkout.

SLK-ROS-AC-215IP-BU

Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 2 reader scalable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.

Features:

  • Secure Lockable Enclosure
  • Power Supply with UPS Charger
  • Rosslare LightBar and Power Lock features
  • Switch mode power supply (SMPS) and a power management board (PM-10)
  • Networked up to 1023 Panels
  • Networked up to 4092 Doors
  • Supports up to 30,000 users in off-line mode, unlimited server based capacity
  • 20,000 event history entries per computer
  • multi-user authentication for high-level security
  • supports a wide range of Wiegand and PIN formats


Specifications:

Type: Network Control Panel
Readers: 2 reader ports (6-wire)
Input/Output: LED control, tamper input
Power Cable Type:  Type B plug power cable
Inputs: 4 supervised, hi-impedance, inputs
Max. voltage: 5 VDC
Outputs: 4 fully programmable 5 A, N.O. and N.C. relay outputs rated 5A @ 30 VDC
Interface: TCP / IP / Wiegand
Serial Ports: 10/100 Ethernet Port
Max Readers:  2
Networking: Rosslare's AxTraxNG™ Server
Users: 30,000 active credentials (Card & PIN)
Unauthorized & Access Groups: 30,000 Unauthorized Users
Event Log: 20,000 Events
SMPS Operating Voltage:  90 ~ 240 VAC, 50 ~ 60 Hz from mains power
SMPS Maximum Input Current: 1.5 A
SMPS Output Power: 15 VDC, 4 A (60 Watts) to the power management
board
PM-10 Input Power: 15 VDC, 4 A to the power management board
PM-10 Output Power: Two PTC fused outputs. Each provides 13.8 VDC, 1.5 A (battery only: 8.8-11.8 VDC) One output for controller and readers. One output for locks
Battery Charger: 13.8 VDC, 300 mA 12VDC, 7Ah Lead Acid Battery
Housing: ME-1015 Power Management Enclosure
Dimensions: 14.3 x 10.4 x 3.4 in.
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b
Warranty: 2-Year Limited
