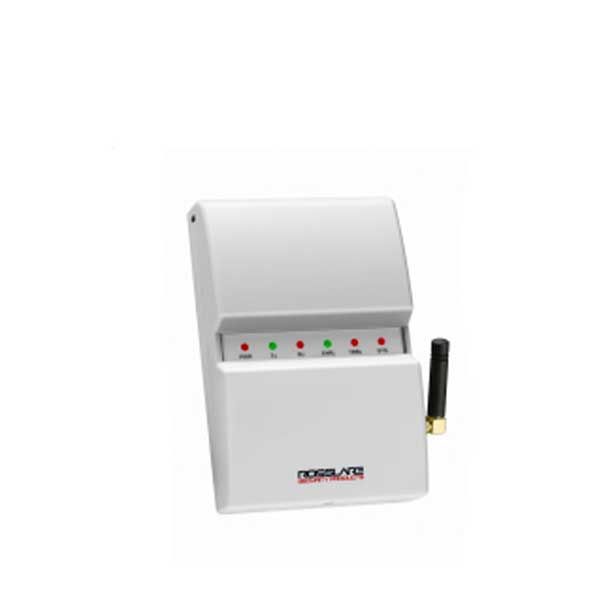

Rosslare - MDW11GR - Wireless Access Control Door Interface - 24 V Power Supply

SLK-ROS-MD-W11GR

The MD-W11GR utilizes Bi-Directional RF data communication and Rolling Code protocol to relay Wiegand 26-bit and other formats including PIN code messages, lock, door relay, tamper, door monitor and REX signals between the Near and Far interface units.

Features

• Bi-directional RF data communication

• Supports PIN codes and card formats, such as Wiegand 26 bit, 32 bit, and PIN code 6 bit

• Lock and door relay commands

• Tamper, door monitor, and REX messages between the controller and the interface unit

• Rolling Code to increase security

• Four different RF channels to prevent collisions

• Built-in charger for up to 12VDC, 7Ah backup battery on the Far unit

• Transfers proximity card information and LED control, reader tamper, lock relay commands, REX, and door monitor events between the coupled units.

• Suitable for indoor use.

• Available in 869 MHz (H) and 433.92 MHz (G) bands

• The NEAR unit is powered from the controller's power supply. The
  FAR unit is powered by a local wall transformer. A built-in
  charger provides battery backup.





Downloads:

• Installation Instructions
