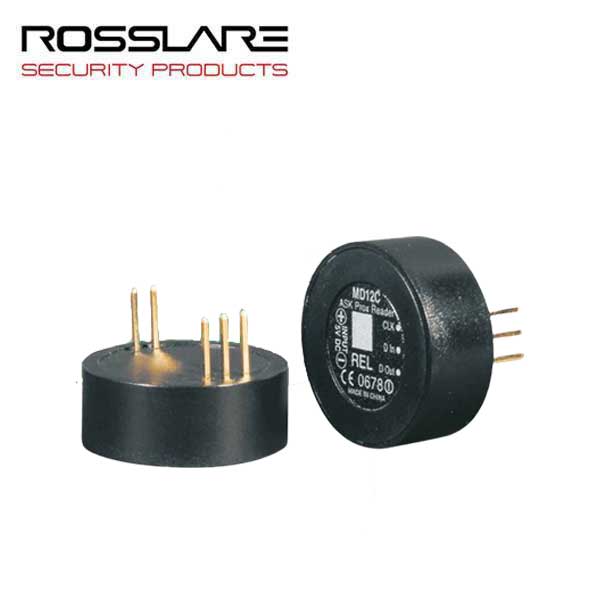

Rosslare - MD12C - Prox Reader Module - Clock & Data - 125 KHz - 5 VDC
Rosslare - MD12C - Prox Reader Module - Clock & Data - 125 KHz - 5 VDC
Rosslare
Regular price
$32.54 USD
Regular price
$35.18 USD
Sale price
$32.54 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-ROS-MD-12C
The SLK-ROS-MD-12C is an OEM proximity reader module. Rosslare's MD-12C Proximity Reader Module is probably the world's smallest OEM Proximity Reader Module. Reliable and cost-effective, this unit uses Clock & Data protocol and is designed for direct mounting on PCBs in a variety of RFID technology applications.
Features:
- Tiny footprint – 22 mm (0.43 in.) in diameter
- Small height – 9.5 mm (0.37 in.)
- Clock & Data output Rosslare format (MD12C)
- Direct mounting on PCB
| Operating Voltage Range | 4.5 to 5 VDC (from a linear type power supply) |
| Standby Input Current | 36 mA |
| Prox. Card Reader | Maximum read range*: 50 mm (2 in.) Modulation: ASK at 125 kHz |
| Operating Temperature | -31ºC to 63ºC (-25ºF to 145ºF) |
| Formats | MD-12C: Clock & Data |
| Technology | RFID |
| Format Protocol | Wiegand 26-Bit |
| ASK | 125 kHz |
| Read Range | 5cm (2in.) |
| Input Voltage | 5 VDC |
| Tiny Footprint | 22 mm (0.43 in.) in diameter |
| Dimensions | Radius: 11 mm (0.43 in.); depth 9.5 mm (0.37 in.) |
| Manufacture Warranty | 5-Year Limited Warranty |
