Rosslare - LKM03L - Magnetic Lock - Surface Mount - 300 LBS - 12/24 VDC

Rosslare - LKM03L - Magnetic Lock - Surface Mount - 300 LBS - 12/24 VDC

Rosslare

$114.69 USD
$137.63 USD $114.69 USD
Sale Sold out
Shipping calculated at checkout.

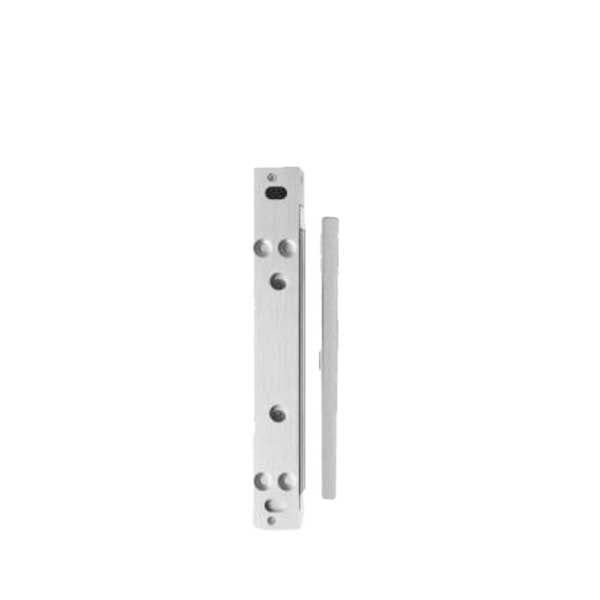

The LK-M03L is a surface mounted magnetic lock with anodized aluminum housing with 300 lbs of holding force, respectively. LK-M03L operates on dual voltage (12 VDC or 24 VDC) and low current consumption. In addition, it has built-in voltage spike suppressor and no residual magnetism.

Features:

  • Dual voltage (12 VDC or 24 VDC) by changing a jumper setting
  • Built-in voltage spike suppressor
  • Compatible with EN55011:1998 class B,EN60601-1-2:2002,EN61000-4-:1995, EN61000-4-3:2002 & UL-S5351
  • Surface Mounted Magnetic Lock
  • 300 lbs holding force and is built from corrosion resistant anodized aluminum

Dimensions 166 x 38.6 x 21.5 mm (6.54 x 1.52 x 0.85 in.)
Device Type Magnetic Lock
Voltage
 Dual voltage: 12/24 VDC
Current
 12 VDC: 360 mA / 24 VDC: 180 mA
Holding Force 136 kg (300 lb)
Operating Environment Suitable for indoor use
Manufacture Warranty 1-Year Limited Warranty
