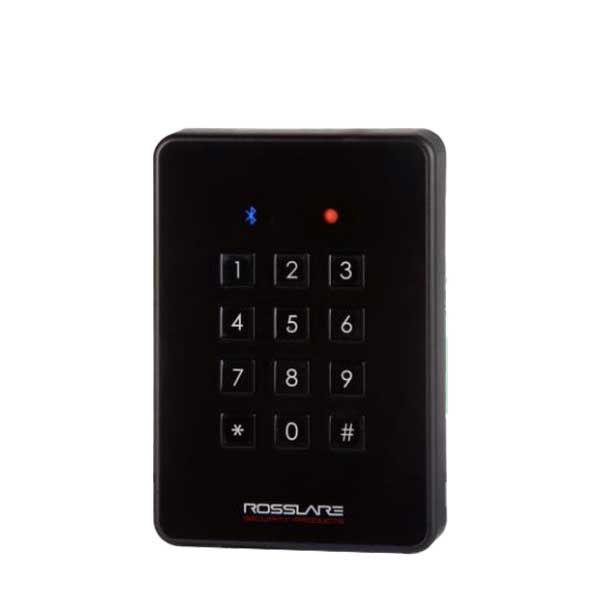

Rosslare - H6355BT - CSN SELECT - Smart Card Reader w/ Keypad - Bluetooth - 13.56 MHz RFID - 8-16 VDC - IP65

Rosslare - H6355BT - CSN SELECT - Smart Card Reader w/ Keypad - Bluetooth - 13.56 MHz RFID - 8-16 VDC - IP65

Rosslare

$174.44 USD
$188.60 USD $174.44 USD
Sale Sold out
Shipping calculated at checkout.

SLK-ROS-AY-H6355BT

The innovative AY-H6355BT reader from Rosslare’s CSN SMART™ series features support for four types of credentials – Rosslare BLE-ID™, Rosslare NFC-ID™, backlit PIN code, and 13.56 MHz RFID contactless UID. Featuring IP-65 (all weather potted) construction, it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility. The AYC H6355BT readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.

*Click the link to download the Android App for Host Card Emulation (HCE).

*This reader comes with Bluetooth credentials, which allows users ease of access wherever applied. Click these links to download the app on either IOS or Android.

Features

  • NFC-ID is supported with Rosslare’s APP-A415 NFC-ID Credential App for Android in Host Card Emulation(HCE) mode*
  • BLE-ID is supported with Rosslare BLE-ID Credential apps for iOS and Android OS*
  • Eight keypad transmission formats are available
  • Mounting options for US gang-box
  • Sleek and modern design, tact keys, superior mechanics, 10-wire 5-m cable.
  • Addressable OSDP connectivity, up to 32 addresses using DIP switches
  • Compatible with CS-HCT Hardware Configuration Tool for Windows application
  • Two tri-colored LED indicators, 1 audible buzzer
  • Optical wall tamper detection
  • Blue backlit keypad with power saving options (On, Off, Dimming)
  • IP68 rated and made of tough polycarbonate UV-resistant plastic
  • Comes with mounting template and installation kit for easy installation


    Specifications:

    Operating Voltage Range: 8 to 16 VDC from a regulated power supply
    Current at 12 VDC: Standby: 120 mA, Maximum: 220 mA
    Read Range: Contactless 13.56 MHz and NFC – Up to 7 cm (2.8 in.)
    Bluetooth BLE 4.1 Connection – Up to 10 m ( 32 ft) open air

    Tamper Output:

    		 Open collector, active low, max. sink current 16 mA
    Control Inputs: Dry Contact, N.O.
    Keypad: 3x4 matrix backlit keypad – 8 modes of transfer to host panel
    Reader Data Output Formats: CSN Wiegand 26-Bit and keypad with eight common output formats RS485 – OSDP
    Dimensions: 4.4 x 3 x 0.7 in.
    ISO14443A Smart Card: MIFARE® Ultralight® Nano/Ultralight EV1/ Ultralight C
    MIFARE Classic®/ Classic EV1
    MIFARE Plus® S / SE / X / EV1
    MIFARE DESFire® EV1 / EV2
    NFC N–TAG / Card Emulation
    ISO14443B Smart Card: China National ID
    ISO15693 Smart Card: HID® iClass®, PicoPass, iCode, LEGIC
    ISO18092 Smart Card: SONY® FeliCa® (Hong Kong Octopus)
    Product Warranty: 5-Year Limited Product Warranty
    Device Certifications: IP65



    Downloads:
