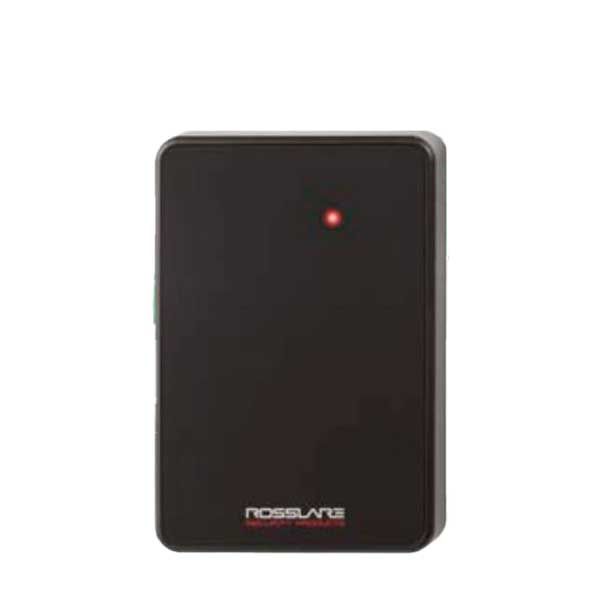

Rosslare - H6255 - CSN SELECT - Smart Card Reader - 13.56 MHz - Multi RFID Standards - 8-16 VDC - IP65

Rosslare - H6255 - CSN SELECT - Smart Card Reader - 13.56 MHz - Multi RFID Standards - 8-16 VDC - IP65

Rosslare

$84.19 USD
$91.01 USD $84.19 USD
Sale Sold out
Shipping calculated at checkout.

SLK-ROS-AY-H6255

The CSN SELECT™ AY-H6255 is a multi-credential technology contactless smart card (13.56 MHz) reader that support access by an NFC compatible Android smartphone app  for use in access control system solutions. The readers have the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards, perfect for transitioning from one technology to another. UV resistant and with an IP65 rated sleek and modern design, the readers can be used comfortably in any installation environment whether indoors or outdoors. The AY-H6255 readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.

Features

  • Sleek and modern design.
  • Addressable OSDP connectivity up to 32 addresses
    using DIP switches
  • Tri-colored LED operation
  • Optical wall tamper detection
  • IP65 rated and made of tough polycarbonate UV resistant plastic
  • Comes with mounting template and installation kit for easy installation
  • Selectable Wiegand output formats: CSN Wiegand 26-Bit/RS-485 – OSDP


    Specifications:

    Operating Voltage Range: 8 ~ 16 VDC, from a regulated power supply
    Standby Current @12V: 75 mA
    Maximum Current @12V: 110 mA
    Read Range: 9 cm (3.5 in.)
    Tamper Output: Open collector, active low, max. sink current 16 mA
    Control Input: Dry Contact, N.O
    Reader Data Output Formats:

    CSN Wiegand 26-Bit RS-485 – OSDP
    ISO14443A Smart Card:
    		 - MIFARE® Ultralight® Nano / Ultralight EV1/ Ultralight C
    - MIFARE Classic® / Classic EV1
    - MIFARE Plus® S / SE / X / EV1
    - MIFARE DESFire® EV1 / EV2
    - NFC N–TAG / Card Emulation
    ISO14443B Smart Card: China National ID
    ISO15693 Smart Card: HID® iClass®, PicoPass™, iCode, LEGIC
    ISO18092 Smart Card: SONY® FeliCa® (Hong Kong
    Octopus)
    Dimensions: 4.4 x 3.0 x 0.7 in.
    Product Warranty: 5-Year Limited Product Warranty
    Device Certifications: IP65



    Downloads:
