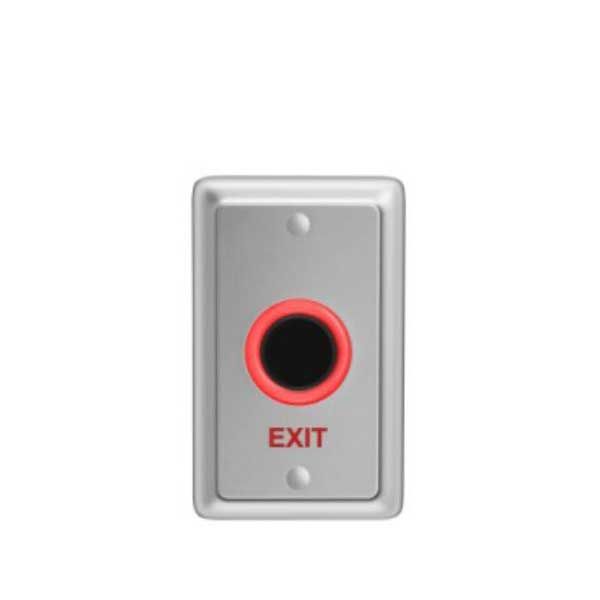

Rosslare - EXH22EO - Passive No Touch Exit Switch - Motion Infrared - 8-30 VDC

Rosslare - EXH22EO - Passive No Touch Exit Switch - Motion Infrared - 8-30 VDC

Rosslare

Regular price $34.97 USD
Regular price $37.82 USD Sale price $34.97 USD
Sale Sold out
Shipping calculated at checkout.

SLK-ROS-EX-H22EO

The EX-H22EO is a passive infrared motion sensor (no touch switch). The new access control switches are designed as flush mounting for US and UK electric boxes with passive infrared technology The switches have a red/green LED ring to display the switch status.

The switches are designed as Request to Exit (REX) buttons for access control systems, direct activate electric strike, or magnet locks with up to 30 VDC and 1A.

Features:

  • Solid-state piezoelectric switch technology
  • N.O. and N.C. relay pulse simply by the touch of a finger
  • Output and Indication Toggle Option
  • Adjustable Output and LED Indication Time of 1 to 60 Seconds
  • Light Ring Status Indicator and Accidental Activation Hindrance
  • Jumper Selectable Illumination Status Red Green, or No Illumination

Specifications:

Type
Piezo
Sensor / Switch Type
Motion
Operating Voltage
8-30 VDC
Led Type
Ring
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Operating Temperature -10˚C to 50˚C (14˚F to 122˚F)
Manufacturer's Warranty: Limited Product Warranty
