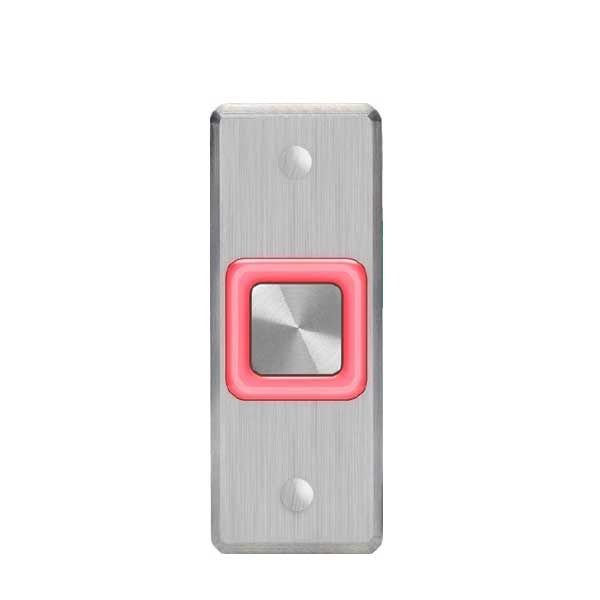

Rosslare - EX17OO - Request To Exit Button w/Toggle - Mullion Size - No Print - Digital Piezo - 12-24 VDC

Rosslare - EX17OO - Request To Exit Button w/Toggle - Mullion Size - No Print - Digital Piezo - 12-24 VDC

Rosslare

Regular price $88.95 USD
Regular price $96.17 USD Sale price $88.95 USD
Sale Sold out
Shipping calculated at checkout.

SLK-ROS-EX-17OO

Rosslare’s EX-17OO is a heavy duty, non-sparking, non-magnetic, corrosion resistant, illuminated, anti-vandal, timed digital switch, designed for both indoor and outdoor use. It features solid state Piezoelectric Switch Technology generating two isolated Form C output relays with no physical movement or moving parts. Among its many features are: Jumper selectable illumination status with light dimming option, buzzer mode, full dual-relay output, timed operation and relay toggle option.

Features:

  • Advanced soft touch piezoelectric switch
  • New weatherproof design – water and dust proof, grease, oil and other chemical solvent repellent
  • Vandal resistant
  • Stainless steel mounting plate and tactile button with no moving parts
  • Mounting Method Single Gang: Mounts directly to a US gang switchbox
  • Backed by Rosslare’s International Guarantee and service with ISO9001 (Certified TÜV Rhineland) level business and manufacturing operations
  • Non-sparking, non-magnetic, corrosion resistant
  • Light square status indicator and accidental activation hindrance
  • Adjustable Output and Led indication time of 1 to 60 seconds
  • Output and indication toggle option
  • Jumper selectable illumination status: red, green, or no illumination
  • Built-in buzzer with alarm input and sound upon button press options
  • Two separate full form-C relay outputs for separate application wiring: N.O. and N.C.
  • Input for external lighting alerts for evacuation and other applications
  • 12-24 VDC/VAC




Specifications:

Type
Piezo
Sensor / Switch Type
Digital Toggle
Operating Voltage
12-24 VDC
Led Type
Square
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty
