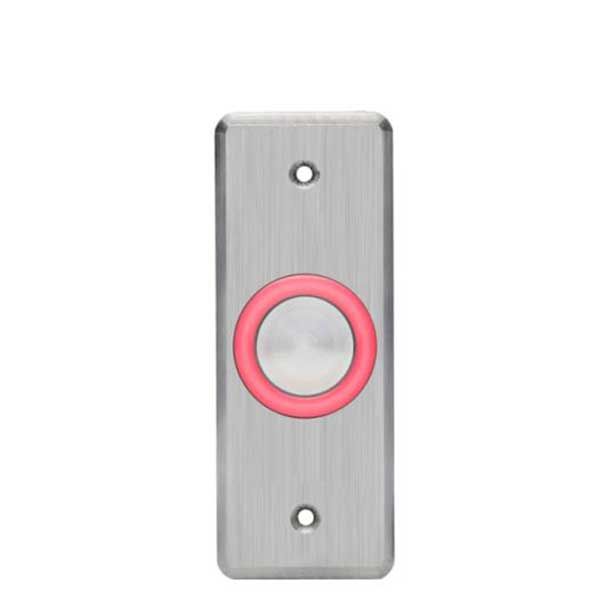

Rosslare - EX16OO - Request To Exit Button w/Toggle - Mullion Size - No Print - Analog Piezo- 10-24 VDC

Rosslare - EX16OO - Request To Exit Button w/Toggle - Mullion Size - No Print - Analog Piezo- 10-24 VDC

Rosslare

$132.31 USD
$158.77 USD $132.31 USD
Sale Sold out
Shipping calculated at checkout.

Rosslare's EX-16OO electronic switches enable the access control of a magnetic lock or electric lock strike. The EX-16OO is heavy duty, illuminated, vandal resistant, analog timed switches, designed for both indoor and outdoor use.

Features:

  • Solid state piezoelectric switch technology
  • N.O. and N.C. relay pulse simply by the touch of a finger
  • Output and Indication Toggle Option
  • Adjustable Output and LED Indication Time of 1 to 60 Seconds
  • Light Ring Status Indicator and Accidental Activation Hindrance
  • Jumper Selectable Illumination Status Red Green, or No Illumination




Specifications:

Type
 Piezo
Sensor / Switch Type
 Analog Toggle
Operating Voltage
 10-24 VDC
Led Type
 Ring
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty
