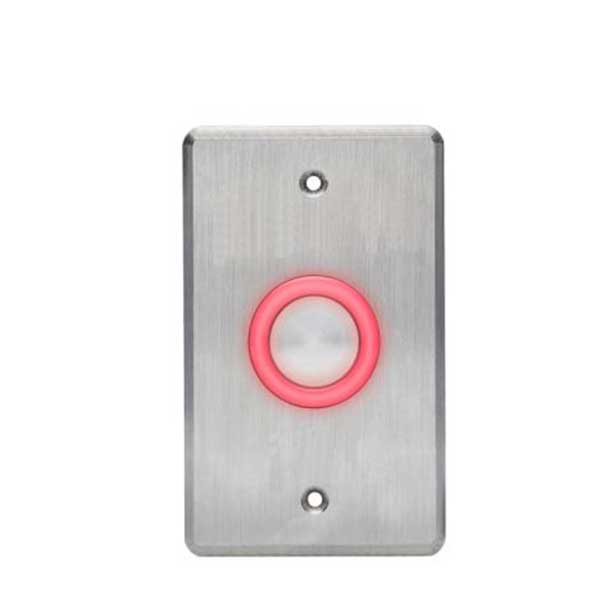

Rosslare - EX06OO - Request To Exit Button w/Toggle - No Print - Analog Piezo- 10-24 VDC

SLK-ROS-EX-06OO

Rosslare's EX-06OO is a part of a powerful line of high quality piezoelectric
switches. Designed in mind of industrial and high-risk environmental
requirements, the EX-06OO will adapt well in mines, oil rigs & refineries, military
installations and more. The switch can be used in many hi-demanding
applications, from heavy machinery and mechanical operation panels, to access
control systems or direct door control.

The EX-06OO with no moving parts is extremely reliable, resilient and robust yet is
encased in an elegant design within a modern case suitable for use by
architects and designers.

Features:

• Solid state piezoelectric switch technology
• N.O. and N.C. relay pulse simply by the touch of a finger
• Output and Indication Toggle Option
• Adjustable Output and LED Indication Time of 1 to 60 Seconds
• Light Ring Status Indicator and Accidental Activation Hindrance
• Jumper Selectable Illumination Status Red Green, or No Illumination




Specifications:

Downloads:

• Installation Guide
