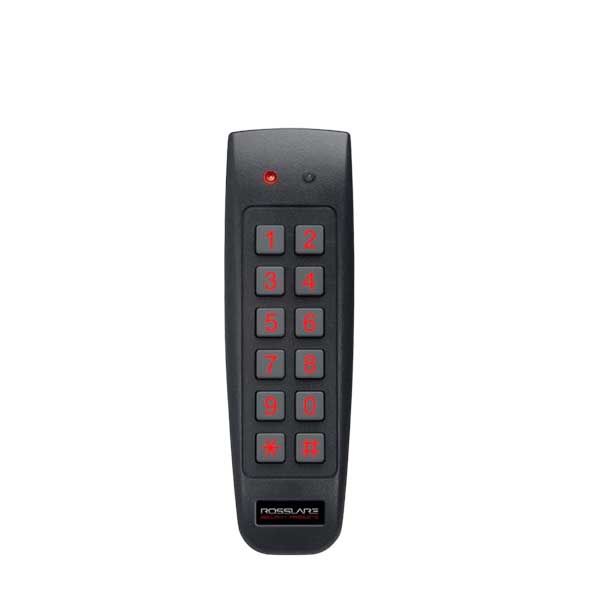

Rosslare - AYCG54 - Mullion Convertible Backlit PIN Reader
Rosslare - AYCG54 - Mullion Convertible Backlit PIN Reader
Rosslare
Regular price
$105.92 USD
Regular price
$120.55 USD
Sale price
$105.92 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-ROS-AYC-G54
The AYC-G54 offers programmable PIN transmission formats, LED control and tamper
detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability. The backlit keypad is clearly visible day or night,
making this unit ideal for residential and commercial applications.
Features:
- Supports 4- to 8-Digit PIN credentials
- Smooth, attractive design, with all-weather indoor and outdoor operation
- Large, high-visibility RED backlit keypad
- 2 tri-colored LEDs and an integral sounder for programming and operation
- User-friendly menu, based on keypad, LED and sounder indicators
- Back and cover optical tamper detection and output
- Automatically recognizes Rosslare’s PS-x25T intelligent power supply family
converting it into a 500-user standalone controller with secure relays
| Operating Voltage Range |
Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| Input Current | 75 mA at 12 VDC |
| Input Current Max | 110 mA at 16 VDC |
| Tamper | Open collector, active low, 32 mA max sink current |
| Keypad | 2x6 keypad for local programming and 4 to 8 digit PIN codes entry |
| Design | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments. |
| Security Modes | Normal, Bypass, Secure |
| Audio/Visual | Two tri-color LED indicators, built-in buzzer |
| LED Control Input |
Dry Contact N.O. |
| Facility Code | Programmable |
| PIN Code Formats | 8 selectable formats, from single to 8-digit PIN codes, including: – Wiegand 6-Bit or 8-Bit, nibble/parity options, optional Rosslare format – 1–5 keys, fixed 4 keys, 6 keys BCD w/Facility code, Wiegand 26- bit – 2x6 Matrix single key – 1 to 8 keys BCD, Clock & Data |
| Capacity | 500 users, single/dual PIN code each |
| User Levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Inputs | REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Operating Environment | Weather-resistant, meets IP65, epoxy-potted, suitable for outdoor use |
| Dimensions | 137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.) |
| Manufacture Warranty | 5-Year Limited Warranty |
