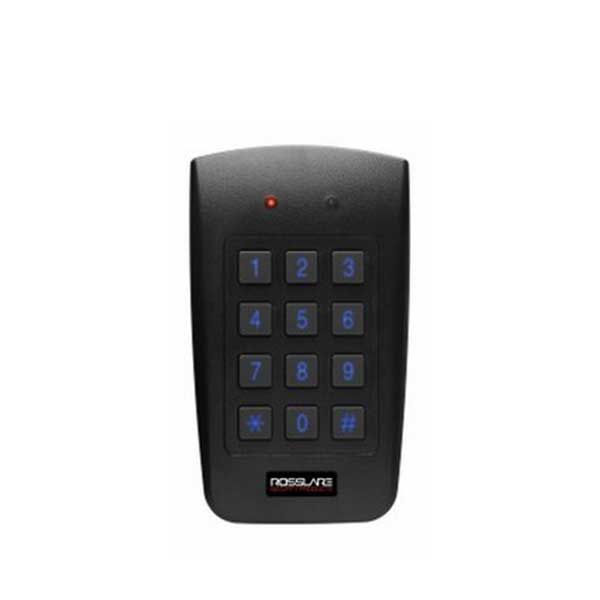

Rosslare - AYCF60 - Backlit Go Prox & PIN Convertible Reader - Controller

SLK-ROS-AYC-F60

The AYC-F60 automatically determines whether to function as a reader or as a secured standalone controller. If the unit is connected to a standard access control unit, then it functions as a reader. If the unit is connected to a Rosslare secured intelligent power supply. As a controller, the units accept up to 500 users, and allow entry via a personal identification number (PIN) and/or by presenting a proximity
card. The PIN code length for the controller can vary. The PIN code length can be a set number of 4, 5, or 6 digits or it can be flexible from 4 to 8 digits

Features:

• Advanced, secure, multi-application functionality for intelligent installations

• Smooth, attractive design, with all-weather indoor and outdoor operation

• 2 tri-colored LEDs and an integral sounder for programming and operation

• Unique backlit piezoelectric keys

• User-friendly menu based on keypad, LED, and sounder indicators

• Back and cover optical tamper detection and output

• Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology™ formats, Wiegand 26-Bit, Clock & Data)

• Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays

• 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
•

Downloads:

• Installation Instructions
• Data Sheet
