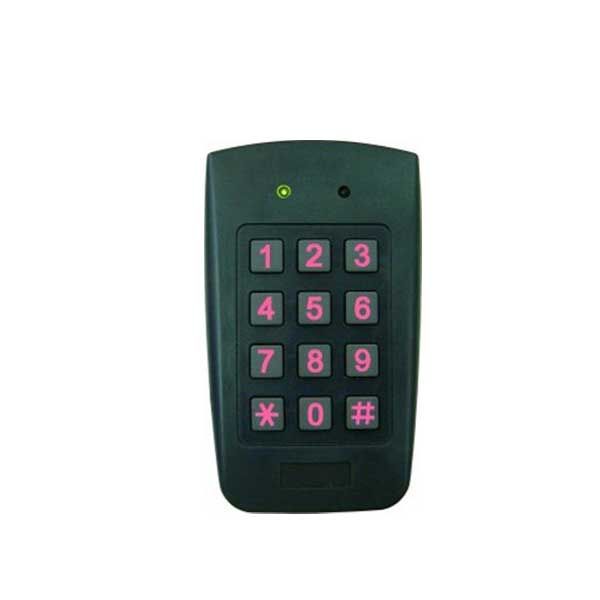

Rosslare - AYCF54 - Convertible 3x4 Backlit PIN Reader & Controller
Rosslare - AYCF54 - Convertible 3x4 Backlit PIN Reader & Controller
Rosslare
Regular price
$166.10 USD
Regular price
$199.32 USD
Sale price
$166.10 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The AYC-F54 offers programmable PIN transmission formats, LED control and tamper
detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability. The backlit keypad is clearly visible day or night,
making this unit ideal for residential and commercial applications.
Features:
- Supports 4- to 8-Digit PIN credentials
- Smooth, attractive design, with all-weather indoor and outdoor operation
- Large, high-visibility RED backlit keypad
- 2 tri-colored LEDs and an integral sounder for programming and operation
- User-friendly menu, based on keypad, LED and sounder indicators
- Back and cover optical tamper detection and output
| Operating Voltage Range |
5–16 VDC |
| Input Current | 75 mA at 12 VDC |
| Input Current Max | 110 mA at 16 VDC |
| Keypad | 3x4 keypad for local programming and 4 to 8 digit PIN codes entry |
| Operating Temperature | -30˚C to 65˚C (-22˚F to 150˚F) |
| PIN Code Formats | 8 selectable formats, from single to 8-digit PIN codes, including: – Wiegand 6-Bit or 8-Bit, nibble/parity options, optional Rosslare format – 1–5 keys, fixed 4 keys, 6 keys BCD w/Facility code, Wiegand 26- bit – 3x4 Matrix single key – 1 to 8 keys BCD, Clock & Data |
| Dimensions | 120 x 76 x 21 mm (4.72 x 2.99 x 0.83 in.) |
