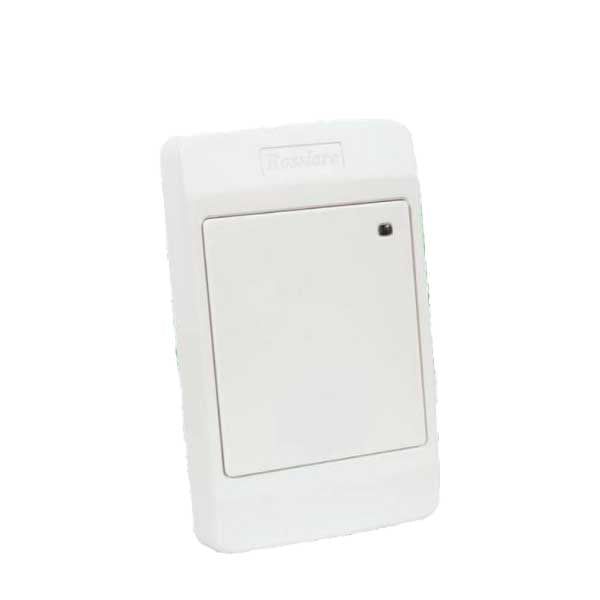

Rosslare - AY-DR12W - Indoor Proximity Reader - 125kHz - 12-16 VDC
Rosslare - AY-DR12W - Indoor Proximity Reader - 125kHz - 12-16 VDC
Rosslare
Regular price
$38.60 USD
Regular price
$41.73 USD
Sale price
$38.60 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-ROS-AY-DR12W
The AY-DR12W is one of a highly sophisticated line of proximity card readers developed by Rosslare. Ideal for residential and commercial applications, this attractively designed reader compliments any decor. The AY-DR12W is packed with advanced features such as an ultra-bright LED indicator, tamper detection feature, bell button, and a reading distance of 80 mm (3.2 in). The AY-DR12W supports multiple proximity card and keypad formats providing a high level of compatibility and connectivity with host controllers.
Features
- Wiegand 26-bit reader
- Reading distance: 3.2 in.
- Internal buzzer provides audible interface feedback
- Bi-colored ultra bright LED indicator
- Fits US Gang box
- 4-wire terminal-block connections
- Indoor use
- Easy installation
Specifications:
| Operating Voltage Range : | 12 to 16 VDC from a regulated power supply |
| Input Current: | Standby: 25 mA at 12VDC Maximum: 60 mA at 12VDC |
| LED Control Input: | Dry contact, Normally Open (N.O.) |
| Tamper Output: | Open collector, active low, 32 mA max sink current |
| Read Range: | 3.2 in. |
| RF Modulation: | ASK, 125 kHz |
| Transmission Formats: | 26-Bit Wiegand: ASK at 125 KHz |
| Compatible Cards: |
26-bit EM cards |
| RFI Protection: | > 20 V/m up to 1000 MHz |
| Dimensions: | 4.8 x 2.9 x 0.7 in. |
| Product Warranty: | 2-Year Limited Product Warranty |
