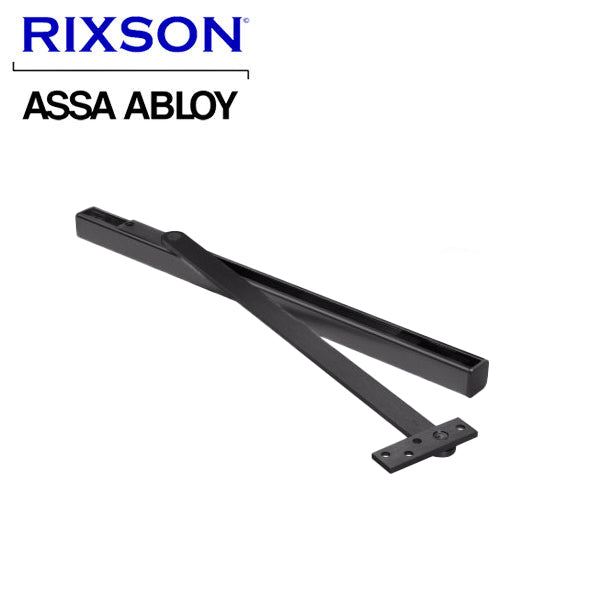

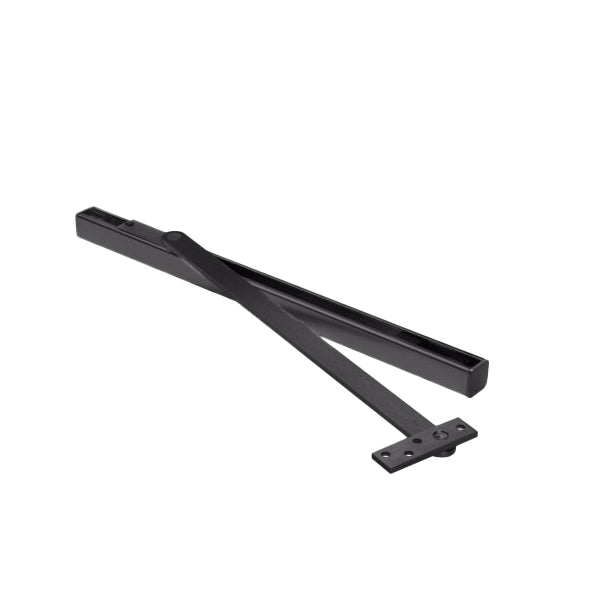

Rixson - 1-336 - Heavy-Duty Concealed Overhead Holder/Stop - Non-Handed - 613E - Dark Oxidized Satin Bronze - Grade 1

Checkmate® overhead stops and holders are used to extend the life of the door, frame, and any door-closing devices. They are ideal for installations prone to strong winds, high traffic, or abuse, and when used with a floor closer, they provide absolute control at the top and bottom of the door.

Features:

• Heavy-duty

• Stop – door deadstops at a particular degree of opening

• Slide track design

• 1-3/4″ minimum door thickness

• 110° maximum opening

• Heavy shock absorber spring provides 5-7° compression before dead stop

• Durable slider cam and shock block

• 1-3/16″ square channel

• Complete screw packet for installation in wood and machine screws for door and frame.

Specifications:

Downloads:

• Catalog
• Installation Instructions
