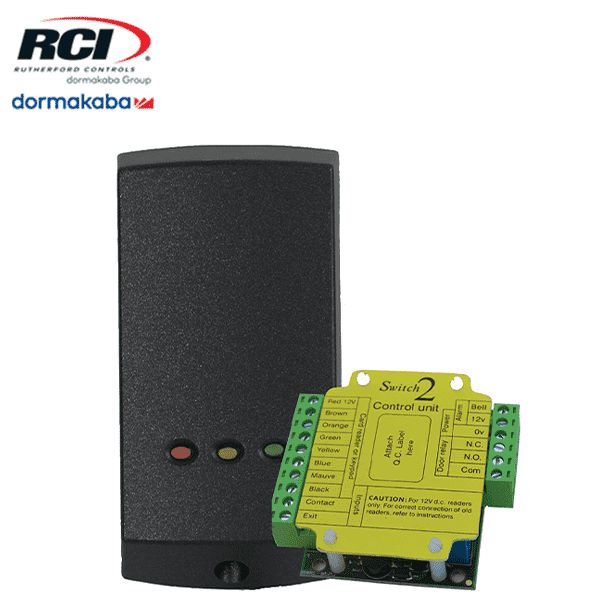

RCI 9321 - Easy Read Prox Slimline Reader

SLK-RCI-9321
Item number: 6665

The 9320/9321 easy read prox slimline readers are single door standalone access control solutions for surface or mullion mount applications. The RCI 9320 is a self-contained unit with a standalone reader, whereas the RCI 9321 is two separate components with a reader and controller. Both options are aesthetically pleasing and are easy to install without requiring a separate programmer. Silent, audible, or visual access validation is available and both units are able to support up to 10,000 users for large scale access control applications.

• Energy: 1000mA 12VDC (Max)
• Users: Supports Up To 10,000 Users
• Read Range: Up To 2-3/8" (60mm) (Using 932-10CP Card, 1-9/16" (40mm) using 932-10KP Fob)
• Warranty: 2 Year Limited Warranty
• Environment: Rugged, Weather-Resistant Design
• Mode: Field-Selectable Fail-Safe & Fail-Secure

Features and Benefits:

• Easy to install
• Supports up to 10,000 users
• Aesthetically pleasing surface or mullion mount design
• Access validation – Silent(9320 only)/Audible/Visual
• Deny access without retrieving user’s card or fob
• No separate programmer required
• Input trigger for request-to exit or other open circuit contact
• Includes black & white snap-on covers
• Proximity cards and fobs are available in packs of 10 (sold separately)
• Dimensions: 1-1/2"W x 3-1/16"H x 1/2"D (38mm x 78mm x 12.7mm) 9320 Reader + Stand Alone One Self-Contained Unit
