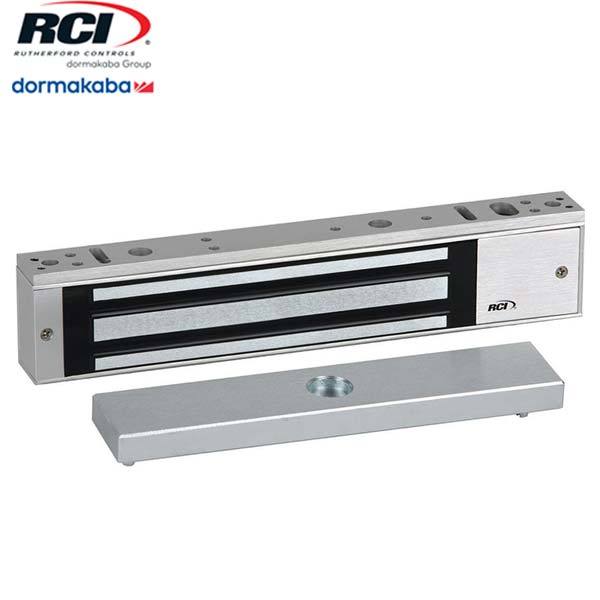

RCI - 8371-28 Surface MiniMag - Single Door Maglock - 750 lb Holding Force - Outswinging Doors

SLK-RCI-8371-28
Item number: 5481

• Stabilizing 4 bolt “drop stop” mounting
• Keyhole mounting for ease of installation
• Surge protection
• Easy-access wiring cavity
• Field selectable voltage - 12/24 VDC
• Up to 750lbs of Holding Force
• Lifetime Limited Warranty
• Fail-Safe
• CAN/ULC S104 UL 10C 1-Hour
• Dimensions: 9-3/8"W x 1-7/8"H x 1"D (238mm x 48mm x 25mm) –
• Includes: 3/16" (5mm) mounting bracket

• Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm)

Features and Benefits:

The RCI 8371-28 series is for single outswinging door application. These electromagnetic locks install easily alongside almost all automatic door operator hardware and RCI's low-profile MiniMags are a great choice for interior traffic control. This reduces installation time and eliminates the need for extra brackets. The MiniMags design of 1-7/8" width helps keep undersized openings within code. This is the only choice for a magnet to use on narrow-style aluminum doors.

Download:

• Installation Manuel
• Technical Drawings
