PDK - Standard Reader - Cloud Network Access Control Mullion Reader (125 KHz Prox)

PDK - Standard Reader - Cloud Network Access Control Mullion Reader (125 KHz Prox)

PDK

$79.86 USD
$79.86 USD
Sale Sold out
Shipping calculated at checkout.

SLK-PDK-RDRM

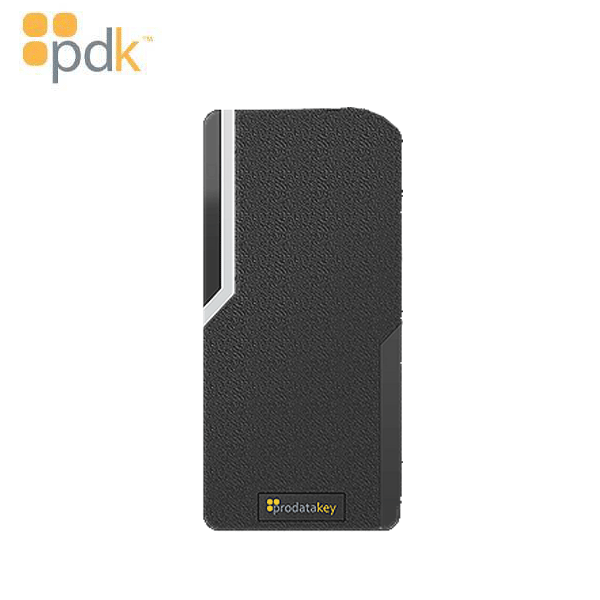

The Metal Reader is modern and sleek for indoor applications, yet durable enough for even the toughest outdoor conditions. A stylish faded split design on the surface allows the free flow of signal providing up to a two-inch maximum sensing distance to enhance the user swiping experience. The Metal Reader is modern and sleek for indoor applications, yet durable enough for even the toughest outdoor conditions. A stylish faded split design on the surface allows the free flow of signal providing up to a two-inch maximum sensing distance to enhance the user swiping experience.

Model PN: RDRM - Cloud Network Access Control Mullion Reader

Metal Reader Features

  • 125 kHz RFID Proximity
  • 26- to 37-bit Wiegand-based format
  • Output converts to Wiegand formats
  • Voltage: 12VDC at the reader. A regulated power supply is recommended for best operation.
  • Electronics potted and sealed with tamper-resistant epoxy for indoor installation
  • FCC, RoHS, and UL Standard 294 compliant
  • IP65* moisture and dust protection (IP rated as "dust tight" and protected against water projected from a nozzle.)
  • 5 kHz audio buzzer

Specifications

Input: Frequency: 125 KHZ
Output: Wiegand protocol
Environmental: Temperature: -20 ~ +60 C or -4 ~ +140 F Humidity: 0 - 95% relative humidity non condensing
Enclosure: Mullion Dimensions (W x H x D) 1.875” x 4” x .875”
Single Gang Dimensions (W x H x D) 3.25” x 4.75” x .875”
Plastic Enclosure
Power: 5V DC from included power supply
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.


Package Contents -

  • Mullion Style Reader (1)
  • Mounting screws (4)
  • Diode (1)
