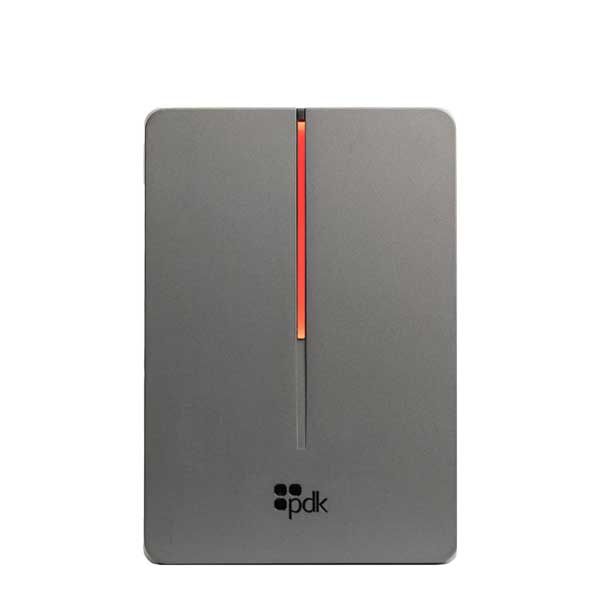

PDK - Ruggedized Reader - Cloud Network Single Gang Access Control Reader (125 KHz Prox)
PDK - Ruggedized Reader - Cloud Network Single Gang Access Control Reader (125 KHz Prox)
PDK
Couldn't load pickup availability
The Metal Reader is modern and sleek for indoor applications, yet durable enough for even the toughest outdoor conditions. A stylish faded split design on the surface allows the free flow of signal providing up to a two-inch maximum sensing distance to enhance the user swiping experience. The Metal Reader is modern and sleek for indoor applications, yet durable enough for even the toughest outdoor conditions. A stylish faded split design on the surface allows the free flow of signal providing up to a two-inch maximum sensing distance to enhance the user swiping experience.
Model PN: RDRGRS - Cloud Network Single Gang Access Control Ruggedized Reader
Metal Reader Features
- 125 kHz prox cards supported
- Anti-vandal and waterproof design
- IP65 fully-potted
- Zinc Alloy metal body
Specifications
| Read Range: | up to ≤ 2” inches (5cm) |
| Input: | Frequency: 125 KHZ |
| Output: | 26bit – 37bit Wiegand protocol Cable Distance: Wiegand 500’ (22 AWG) |
| Environmental: | Temperature: -4 ~ +122 F or -20 ~ +50 C Humidity: 0 - 95% relative humidity, non-condensing Protection Rating: IP65 |
| Enclosure: | Dimensions: (W x H x D) 4.72 x 3.27 x 0.89” (Single Gang) |
| Power: | DC12V±10% |
| Manufacturer’s Limited Warranty | One to five-year warranty against defects in materials and workmanship. For full details visit prodatakey.com. |
Package Contents -
- Card Reader (1)
- Punch Sticker (1)
- L Wrench (1)
- Self Tapping Screws (3)
- Expansion Rubber Bungs (3)
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
Online Manual
