  • Norton - 7500 - Packed Manual Commercial Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Hold Open - Adjustable Arm - Adjustable Sizes 1-6 - Plastic Cover - Satin Aluminum - Fire Rated - Grade 1 - UHS Hardware
1 3

Norton - 7500 - Packed Manual Commercial Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Hold Open - Adjustable Arm - Adjustable Sizes 1-6 - Plastic Cover - Satin Aluminum - Fire Rated - Grade 1

Norton - 7500 - Packed Manual Commercial Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Hold Open - Adjustable Arm - Adjustable Sizes 1-6 - Plastic Cover - Satin Aluminum - Fire Rated - Grade 1

Norton

$353.60 USD
$424.32 USD $353.60 USD
Sale Sold out
Shipping calculated at checkout.

NOR-7500-689

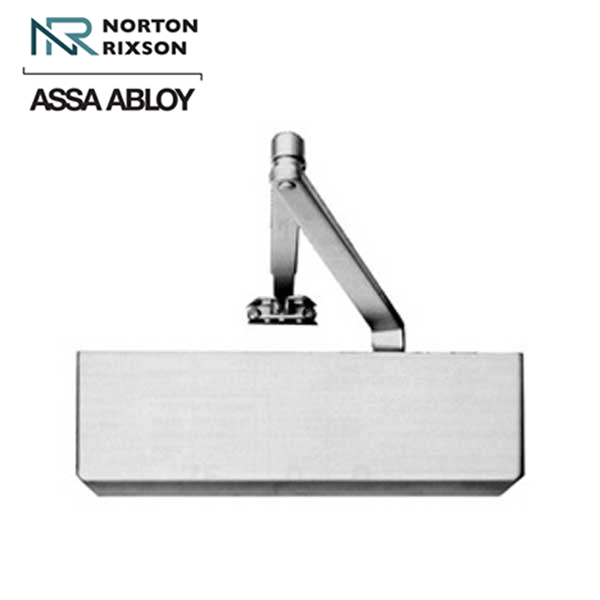

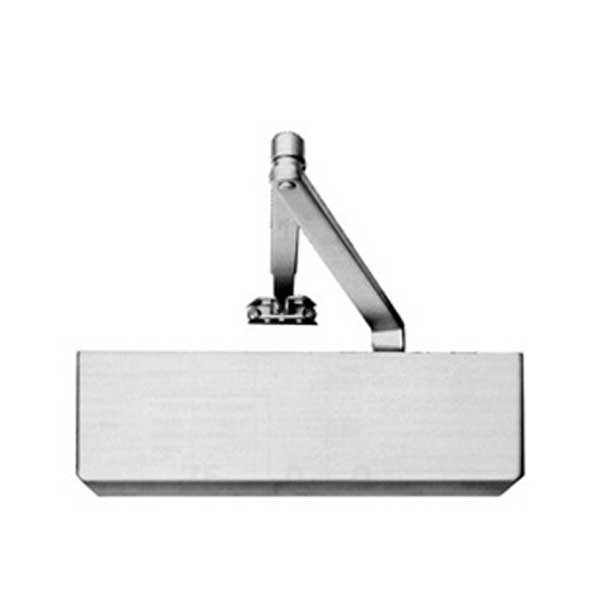

The Norton 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as; government, healthcare, or educational institutions.

Features:

  • Adjustable spring sizes 1 through 6 (ADA Compliant)
  • Tri-Style® packaging for regular, top jamb or parallel arm mounting
  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • Backcheck positioning valve
  • Molded plastic cover
  • All standard arm applications allow doors to swing 180°, conditions permitting
  • Self-drilling screws
  • Slide Tracks: push or pull side mounting


          Specifications:

          Construction: Heavy-Duty cast-aluminum body
          Function: Hydraulic Manual Door Operator
          Closer Type: Hold Open
          Interior or Exterior: Universal
          Handing: Non-Handed
          Finish:  689 - Aluminum
          Door Width: 36 - 48"
          Diameter Piston: 1-1/2"
          Diameter Pinion Journals: 5/8"
          Projection from Wall: 2-3/16"
          Mounting Style:
          		 Parallel, Regular, Top Jamb
          Arm Type: Adjustable Sizes 1 to 6, Standard
          Max. Door Opening: 180 Degrees
          ADA: Meets requirements for Americans with Disabilities Act (ADA)
          Fire Rating: UL10c 90-minute positive pressure fire rating
          Certifications: ANSI/BHMA A156.19 certified Grade 1
          Warranty: 30-Year Limited Manufacturer Warranty


          Downloads:
