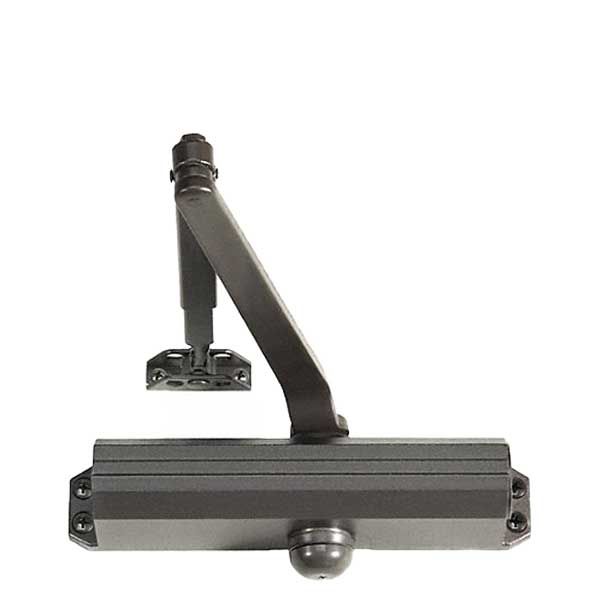

Norton - 1604 - Tri-Packed Manual Door Closer - Backcheck - ANSI Size 4 - Dark Bronze - Grade 1

Norton - 1604 - Tri-Packed Manual Door Closer - Backcheck - ANSI Size 4 - Dark Bronze - Grade 1

Norton

Regular price $160.45 USD
Regular price $207.62 USD Sale price $160.45 USD
Sale Sold out
Shipping calculated at checkout.

SLK-NOR-1604-690-BC

The 1600 Series Door Closers offer proven quality, performance, and reliability unmatched by the competition. A staple in the industry, these ANSI/BHMA Grade 1 closers are designed for exterior or interior doors. a full complement of regular and heavy-duty arms, brackets, and options make the 1600 series ideal for virtually any medium traffic, commercial application. The adjustable backcheck feature gives the closer a range that will allow it to forcefully slow down between 70 and 180 degrees. Allowing for use of this product in smaller hallways.

Features:

  • Exceeds 25 million cycles
  • Non-handed
  • Adjustable Backcheck stopping feature
  • Rack-and-pinion design
  • Cast aluminum closer body
  • can swing door 180 degrees from closed position
  • staked valves
  • Preset spring size of 4


Specifications:

Construction: Heavy-Duty cast-aluminum body
Function: Hydraulic Manual Door Closer
Closer Type:  Hold Open Function
Handing: Non-Handed
Ligature Resistant: No
Closer Mounting Style:  Parallel, Regular, Top Frame
Finish:  Dark Bronze
Arm Type:  ANSI Size 4, Standard
Door Width: 42" interior 36" exterior
Housing Height: 1-7/8 in
Housing Length: 9 1/16 in
Max. Door Opening: 180 Degrees
Piston Diameter: 1 3/8 in
Projection from Wall: 2 5/8 in
Pinion Journals Diameter: 5/8 in
Fire Rating: 3 hrs.
Certifications: ANSI A156.4 Grade 2, UL and cUL Listed
