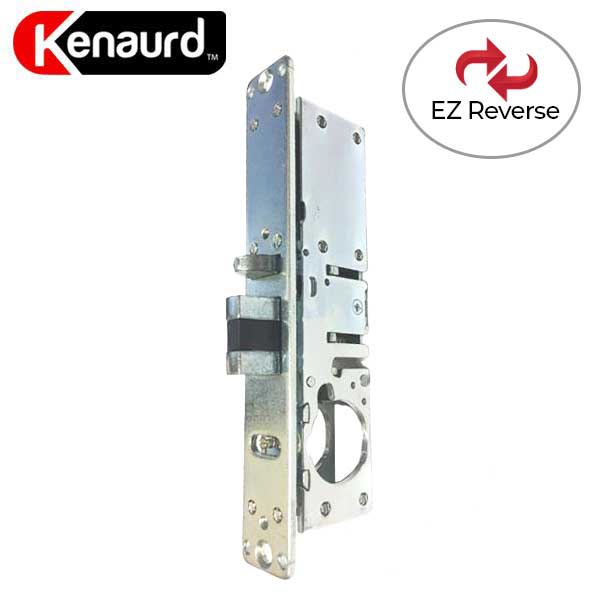

Narrow-Stile - Latch Lock Body - Deadlatch - 1-1/8" - with 2 Faceplates & EZ Reverse
Narrow-Stile - Latch Lock Body - Deadlatch - 1-1/8" - with 2 Faceplates & EZ Reverse
Kenaurd
Regular price
$12.05 USD
Regular price
$15.90 USD
Sale price
$12.05 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-KNS01-ADJ
Item Number: 6163
The Premium Narrow-Stile Latch Lock Body with EZ Reverse offers flexibility of traffic control. The EZ Reverse system allow the Lock to be reversed to Left or Right Hand applications in seconds. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise Cylinder
See Video
| Backset | 1-1/8" [28.6 mm] |
| Handing | EZ Reverse System - Flip from LH to RH in seconds |
| Case | Zinc Plated Steel lock body |
| Case Dimensions: | 7/8" width x 6" Length |
| Cylinder: | Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/8" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included) |
| Latchbolt |
Latch 13mm chrome plated with delrin insert for quiet latching 1/2" width x 1.0" length x 1/2" Throw |
| Auxiliary Linchpin | Steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry. |
| Faceplate | Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. |
| Strike | Standard strike furnished for flat jamb where door closes flush or nearly flush. |
| Standard Package |
Individually boxed with strike plate, 2 faceplates, and mounting screws. Available in 25 Count Carton / Box Cylinders, paddles, handles available separately. |
